Antimicrobial Coatings

ANTIMICROBIAL COATINGS

stopping the spread of micro-organisms
Our powder coating products, available in various grades for interior and exterior use, specially designed for protection against the growth of harmful microbes on finished surfaces. These coatings contain an active ingredient that will, in a controlled-release mechanism, inhibit the growth of the microbes. They have high and lasting efficacy against a broad spectrum of bacteria, fungi and viruses.
TECHNICAL DATA
Antimicrobial properties:

a. JIS Z 2801:2010/A1:2012 Antibacterial Products–Test for Antibacterial Activity and Efficacy
AM Product: OXYPLAST PR12/40340/CS2AMOff-White

Test Microorganism Used: Staphylococcus aureus (ATCC 6538P) & 2. Escherichia coli (ATCC 8739)
Percentage Reduction (Kill rate) After 24 hrs: Between 99.0–99.9%

b. Long-term antimicrobial activity, without releasing any toxic chemicals,and effective evenafter repeated washings

Gloss at 60°: According to the chosen grade
Finish: Various finishes available
Colour Range: From dark to off-white shades. Not available in pure whites.
Powder Curing: 10 mins / 160–200°C, according to the chosen grade
Impact Resistance and flexibility: Good to excellent, depending on the chosen grade
Typical Uses: Consumer goods and appliances, lockers and furniture, hand rails, equipment and ceiling panels in settings such as healthcare, nurseries and schools, hotels, public amenities etc

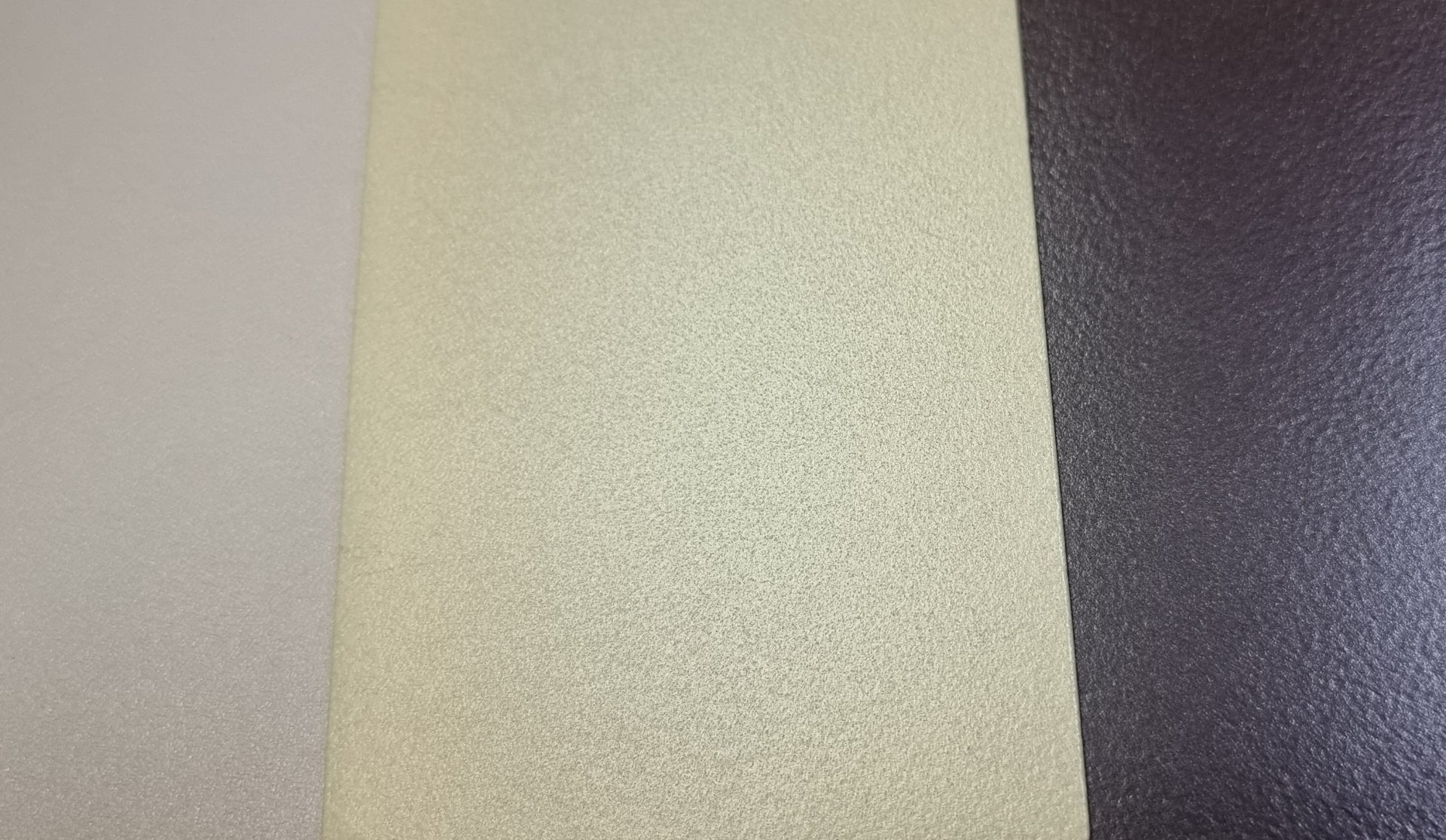

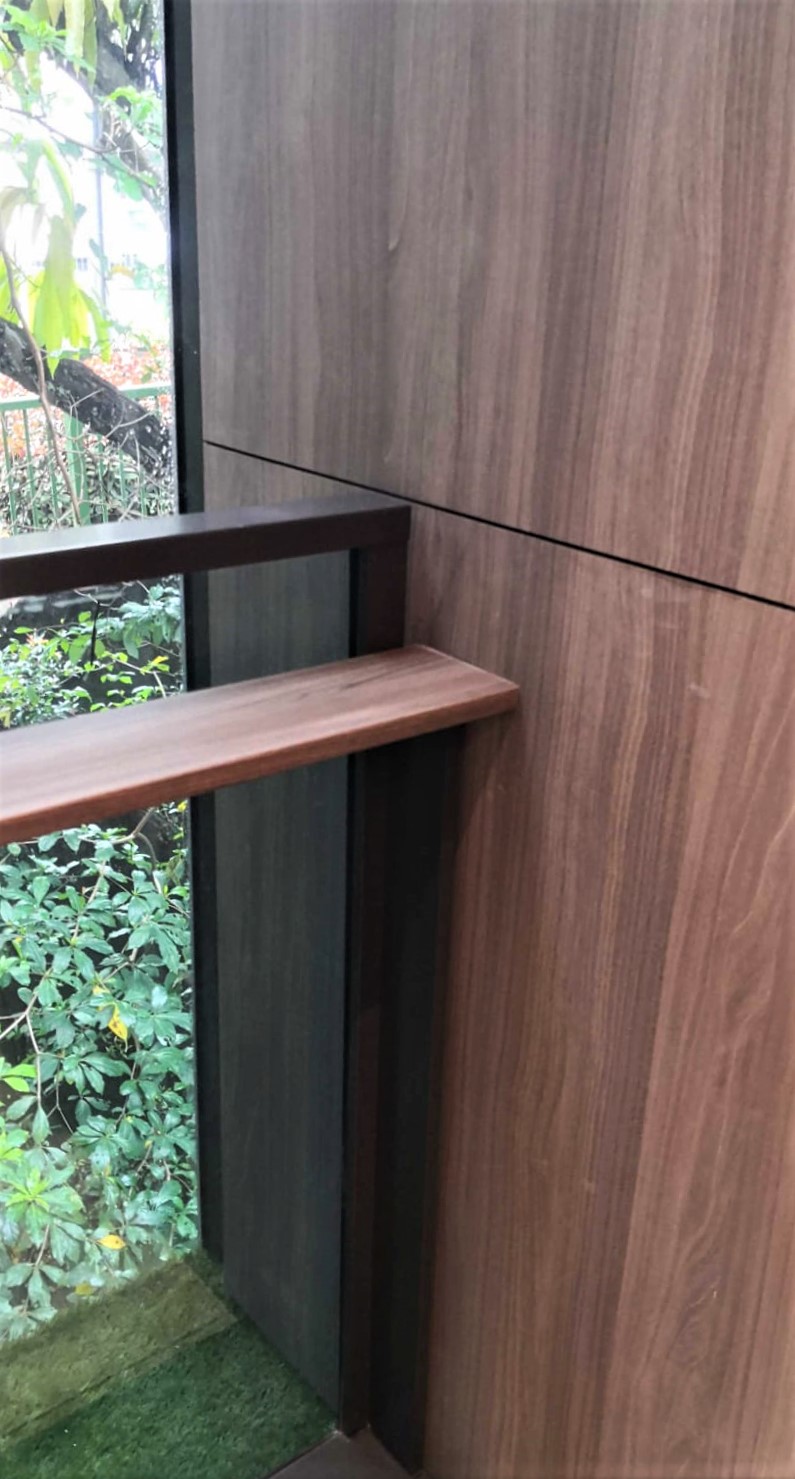

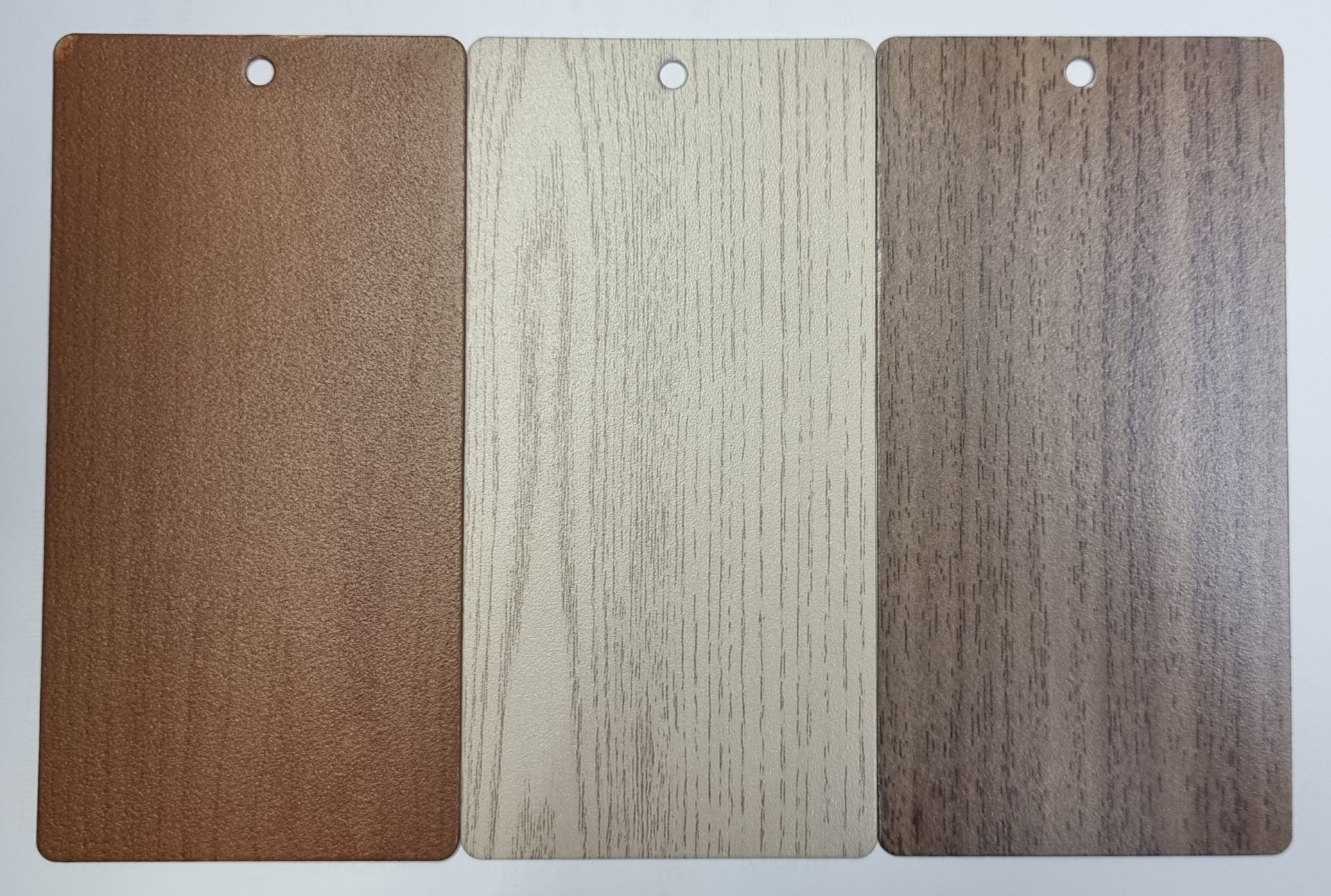

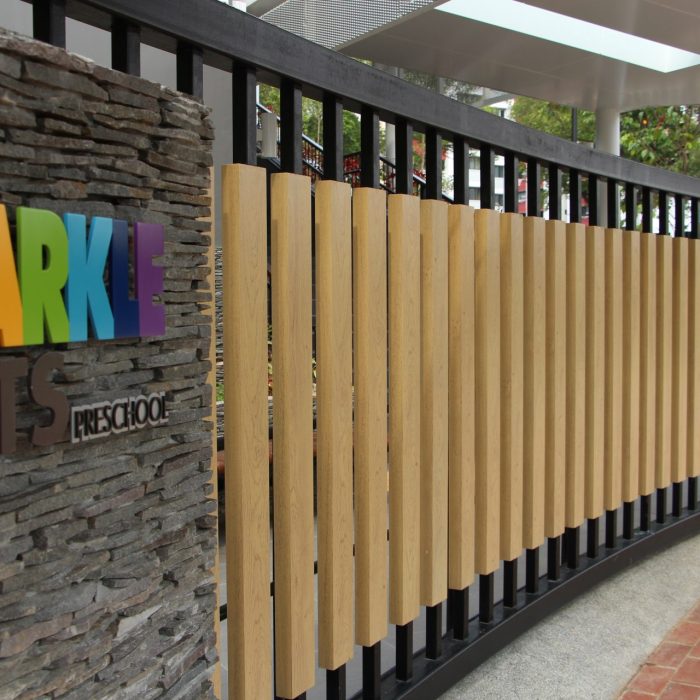

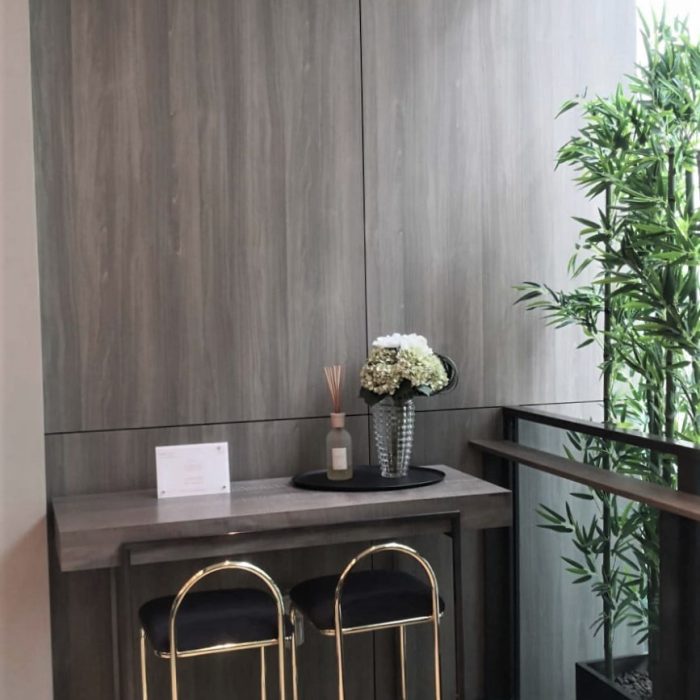

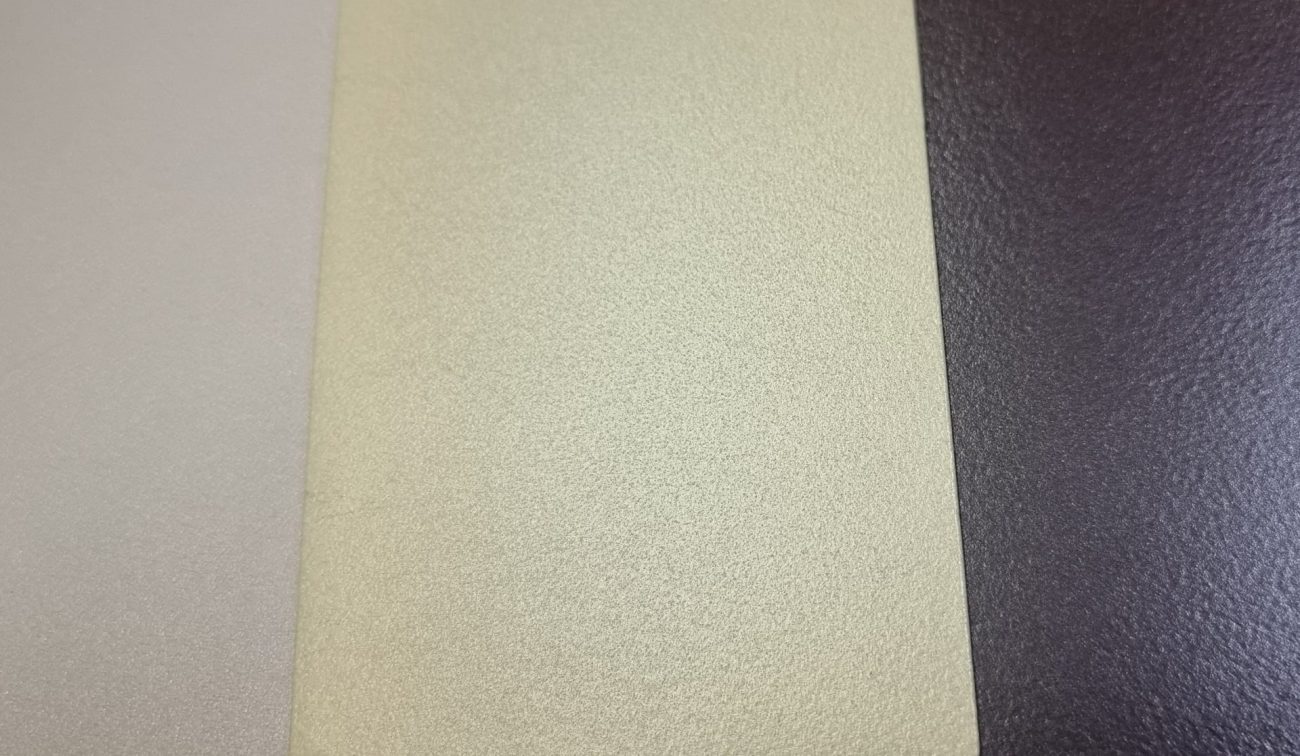

Basecoat for Image Transfer Finishes

BASECOAT FOR
IMAGE TRANSFER FINISHES

for efficient sublimation transfer
A series of powder coatings formulated as basecoats for image transfer process. Provides a good range of colour bases for panels and 3-dimensional items to which a wide variety of decorative images can be transferred, with wood-grain finishes being the most popular.
Specific Feature Coatings

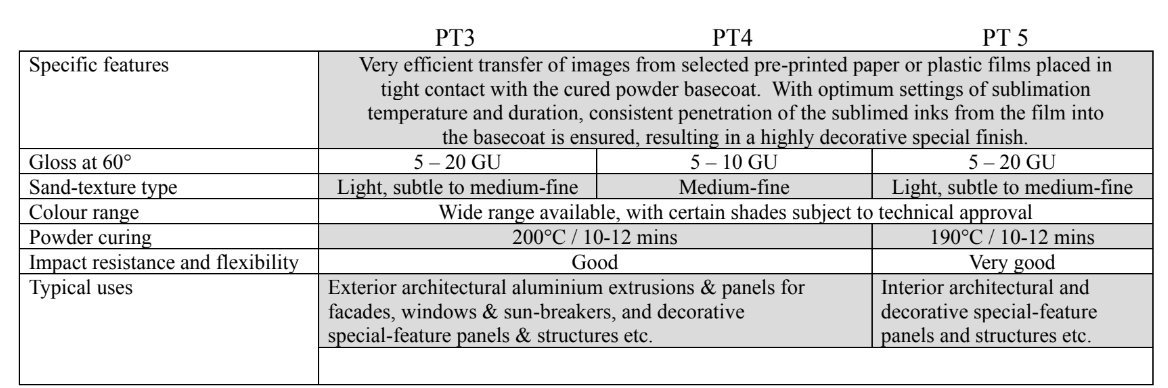

PT3 – SUPERDURABLE POLYURETHANE
PT4 – OUTDOOR DURABLE POLYESTER
PT5 – EPOXY-POLYESTER
TECHNICAL DATA
Specific Features:
Very efficient transfer of images from selected pre-printed paper or plastic films placed in tight contact with the cured powder basecoat. With optimum settings of sublimation temperature and duration, consistent penetration of the sublimed inks from the film into the basecoat is ensured, resulting in a highly decorative special finish.

Gloss at 60°: 5 – 20 GU
Sand-texture type: Light, subtle to medium-fine
Colour Range: Wide range available, with certain shades subject to technical approval
Powder Curing: 200°C/10-12 mins
Impact Resistance and flexibility: Good
Typical Uses: Exterior architectural aluminium extrusions & panels for facades, windows & sun-breakers, and decorative special-feature panels & structures etc

Specific Features:
Very efficient transfer of images from selected pre-printed paper or plastic films placed in tight contact with the cured powder basecoat. With optimum settings of sublimation temperature and duration, consistent penetration of the sublimed inks from the film into the basecoat is ensured, resulting in a highly decorative special finish.

Gloss at 60°: 5 – 10 GU
Sand-texture type: Medium-fine
Colour Range: Wide range available, with certain shades subject to technical approval
Powder Curing: 200°C/10-12 mins
Impact Resistance and flexibility: Good
Typical Uses: Exterior architectural aluminium extrusions & panels for facades, windows & sun-breakers, and decorative special-feature panels & structures etc

Specific Features:
Very efficient transfer of images from selected pre-printed paper or plastic films placed in tight contact with the cured powder basecoat. With optimum settings of sublimation temperature and duration, consistent penetration of the sublimed inks from the film into the basecoat is ensured, resulting in a highly decorative special finish.

Gloss at 60°: 5 – 20 GU
Sand-texture type: Light, subtle to medium-fine
Colour Range: Wide range available, with certain shades subject to technical approval
Powder Curing: 190°C/10-12 mins
Impact Resistance and flexibility: Very good
Typical Uses: Interior architectural and decorative special-feature panels and structures etc

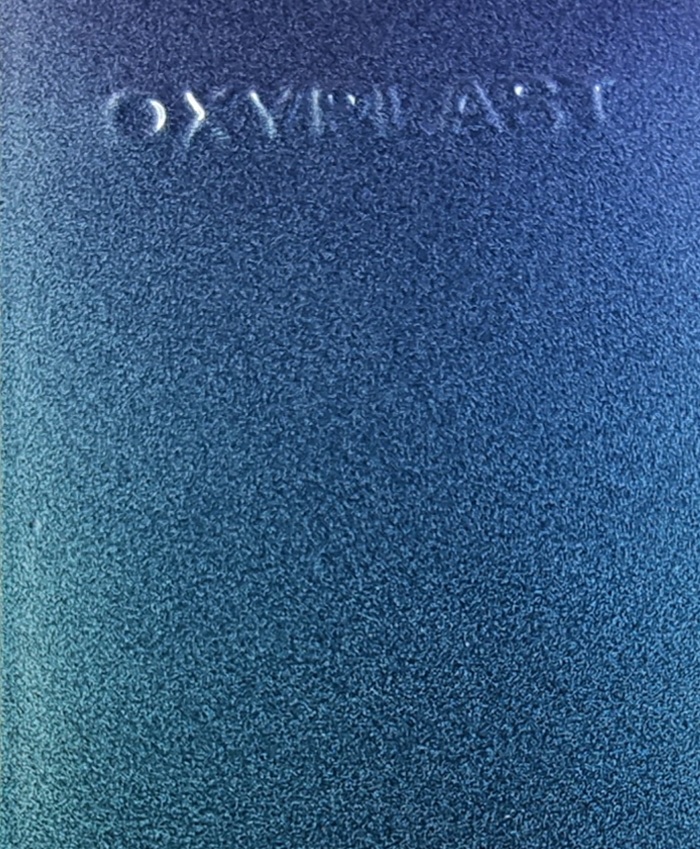

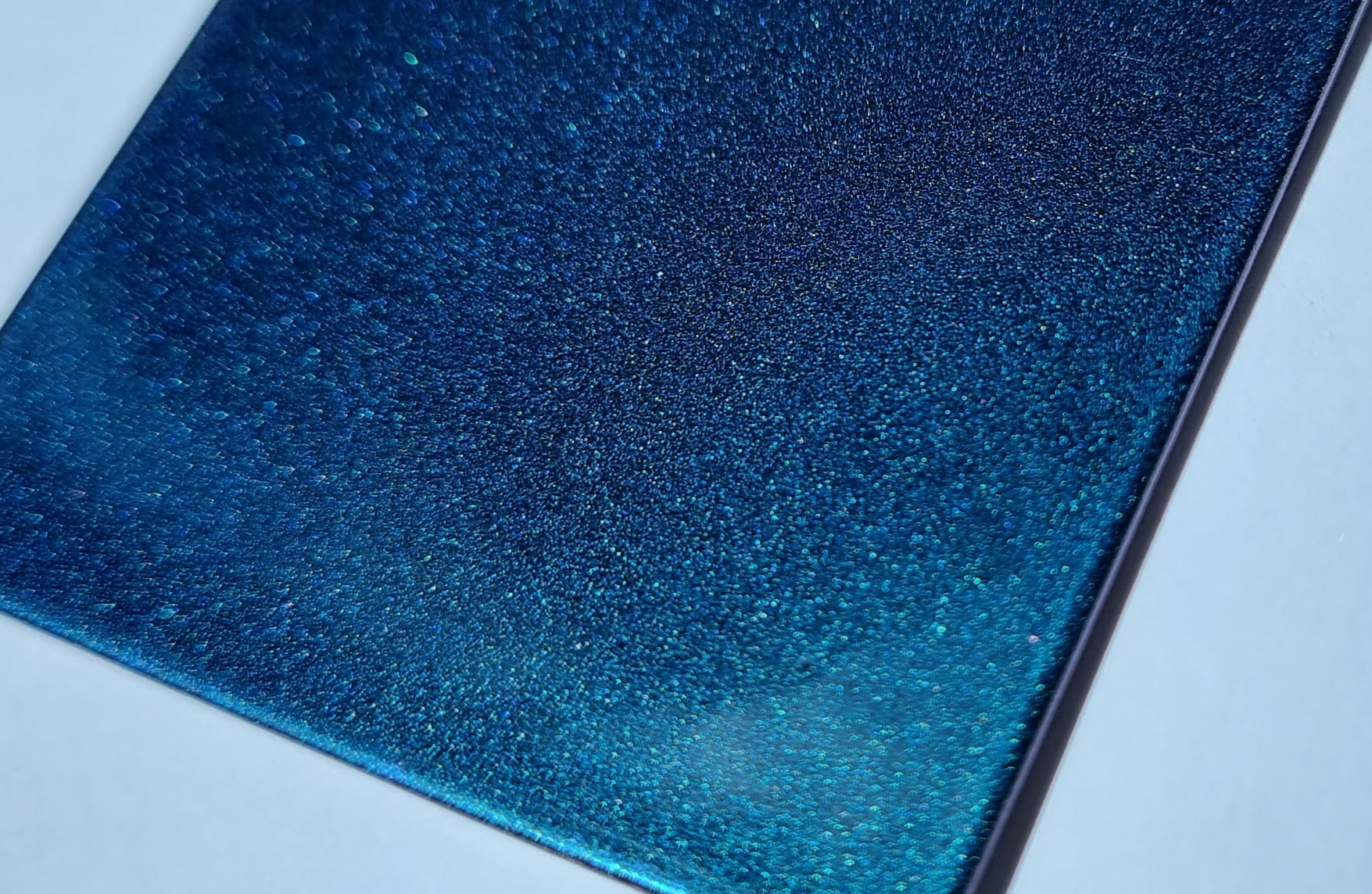

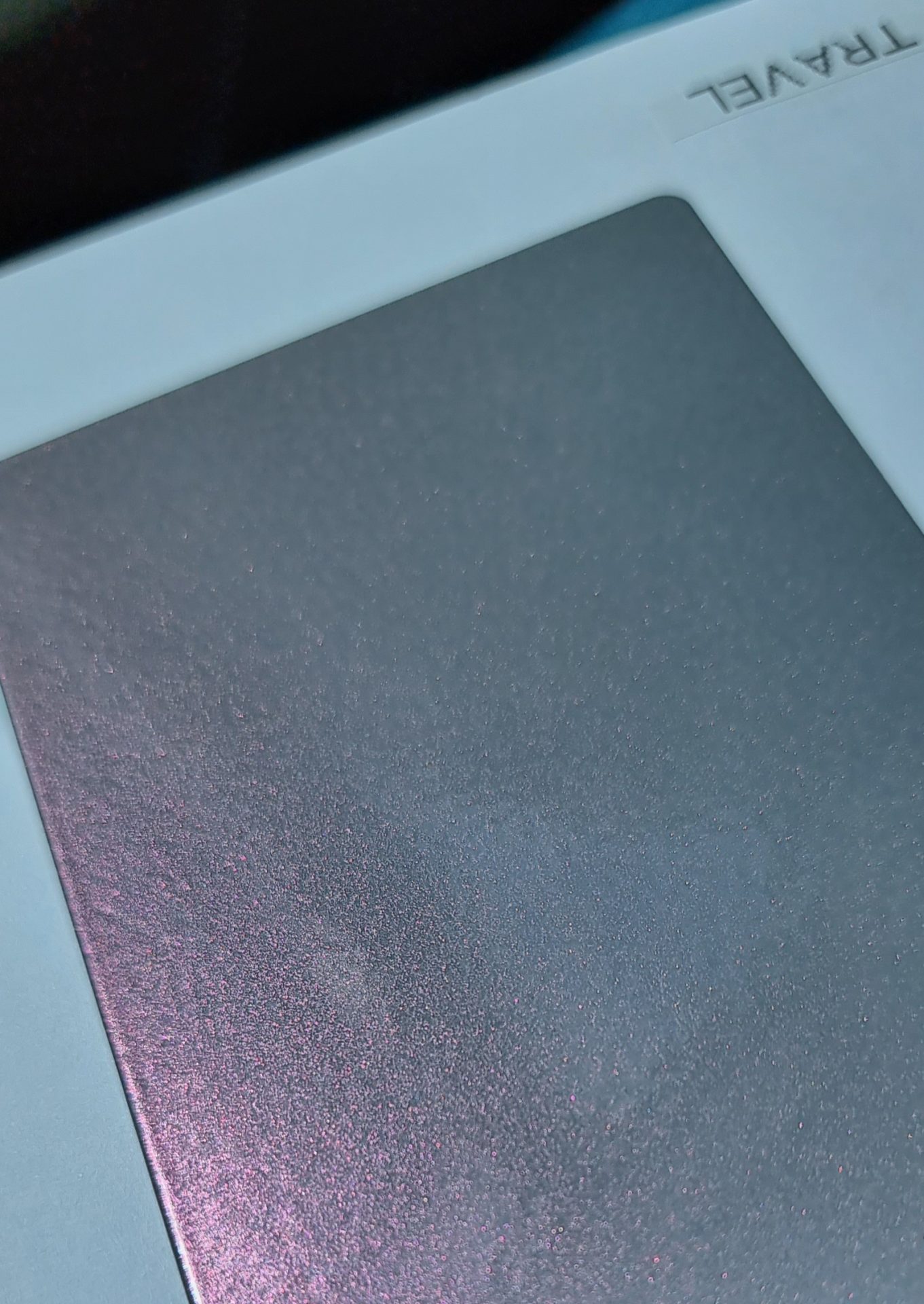

Colour Travel Effect Coatings

COLOUR TRAVEL
EFFECT COATINGS

for a unique visual experience
These are special visual effect products with an added creative touch to the colour of the coating. The special ingredients used impart a unique multi-colour effect to the coating whereby the perceived colour changes distinctly in hue depending on the viewing angle and direction of lighting, hence the name “Colour Travel”. Similar to a chameleon changing its colour.
Specific Feature Coatings
T Products–COLOUR TRAVEL EFFECT COATINGS
TECHNICAL DATA
Specific Features:

  • Perceived colour changes distinctly in hue as viewing angle and direction of lighting change
  • Available in indoor and outdoor grades(standard and superdurable polyesters)

As with all special finishes, proper control of the application process parameters is critical. The application & processing guidelines for Oxyplast powders pertaining to metallic-finish & special-finish powder coatings should be followed.

Gloss at 60°: Matt to high-gloss, according to the chosen grade
Finish: Smooth finish recommended for best effect
Colour Travel Range: Blue-turquoise-green; Pink-green; Violet-blue-pink; Green-pink-violet (Possible permutations, subject to stock availability)
Powder Curing: 10 mins / 160–200°C, according to the chosen grade
Impact Resistance and flexibility: Good to excellent, depending on the chosen grade
Typical Uses: Architectural hardware, outdoor and indoor furniture, bicycle frames, auto accessories, decorative panels etc

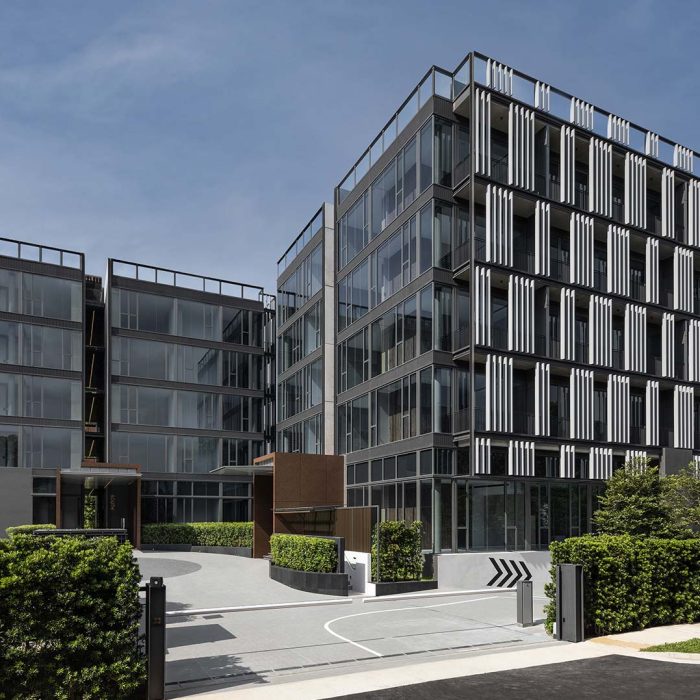

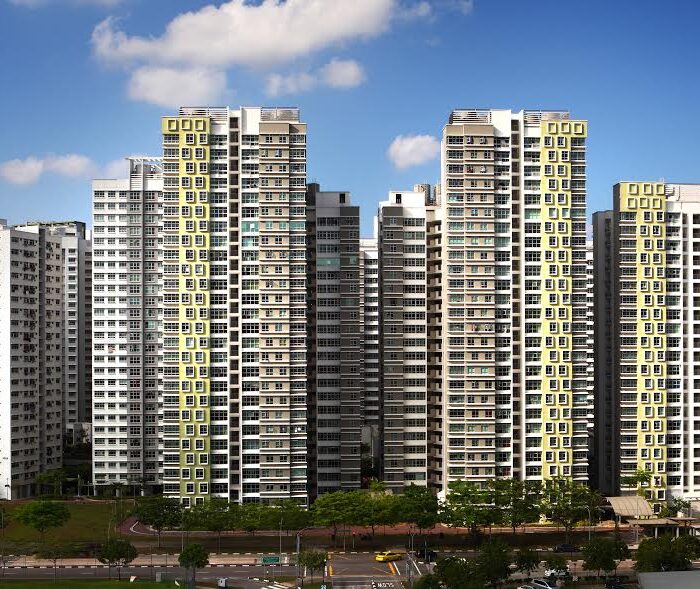

Cool Coatings

COOL COATINGS

keeping temperatures down
These are exterior durable products with a special ability to keep external coated surfaces cooler than usual, due to its higher efficiency in reflecting away the infra-red component of the solar radiation that reaches it, as compared to regular coatings. Less heat is generated on the coated surface, hence a lower surface temperature. Results: a cooler building interior, therefore reducing energy costs for cooling of the interior. A feature of green buildings.
Specific Feature Coatings
CL Products – COOL COATINGS
TECHNICAL DATA
Specific Features:

  • Significantly higher Total Solar Reflectance, TSR Values (total amount of solar energy reflected by a surface material)
  • Very dark and black shades remain relatively cooler than regular coatings of corresponding shades. Dark shades absorb more heat energy and therefore benefit the most from the cool coating feature compared to light colours



  • Less heat generated on coated surface, with temperature reduction of between 5-12°C
  • Available in APR, APR/H&APX Superdurable Polyesters and HPD Hyperdurable Fluoropolymer grades

Gloss at 60°: Matt to high gloss, according to the chosen grade
Colour Range: Wide range, excluding certain high-chroma exotic colours. Blacks& dark shades benefit the most.
Powder Curing: 10–25mins @ 185–205°C, according to the chosen grade
Impact Resistance and flexibility: Good
Typical Uses: Architectural aluminium extrusion sand panels for facades and windows etc

Electrostatic Dissipative (ESD) Coatings

ELECTROSTATIC DISSIPATIVE
(ESD) COATINGS

creating an electrostatic discharge-safe environment
Our powder coating products, available in various interior and exterior grades,specially designed for electrostatic discharge (ESD)-safe applications. They work by preventing static charge build-up on work-surfaces and equipment surfaces, thereby creating an ESD-safe environment around them. This is due to their low film surface electrical resistance resulting from the special formulation.
Specific Feature Coatings
ESD Products – ELECTROSTATIC DISSIPATIVE COATINGS
TECHNICAL DATA
Specific Features:

  • Reduced surface resistance of typically 104–109Ohms compared to ≥ 1012Ohms for regular coatings
  • Surface resistance values:



Gloss at 60°: According to the chosen grade
Finish: Various finishes available
Colour Range:

  • Static Dissipative coatings: dark to off-white shades; no white shades
  • Conductive coatings: dark to light shades; no white or off-white shade

Powder Curing: 10 mins / 160–200°C, according to the chosen grade
Impact Resistance and flexibility: Good to excellent, depending on the chosen grade
Typical Uses: Clean rooms, work stations & benches, furniture, ceiling panels, electrical cabinets & enclosures that house ESD-sensitive equipment etc

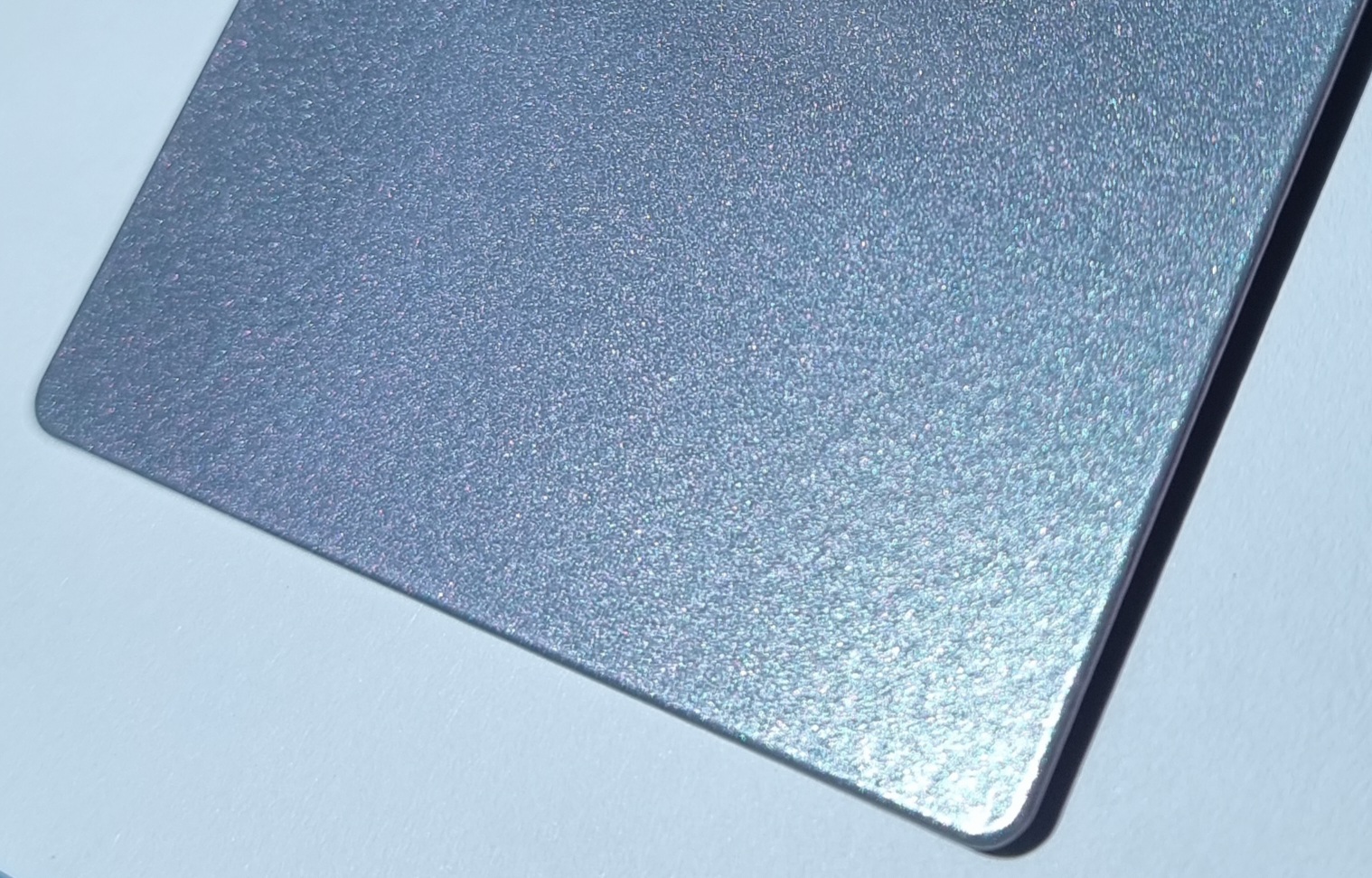

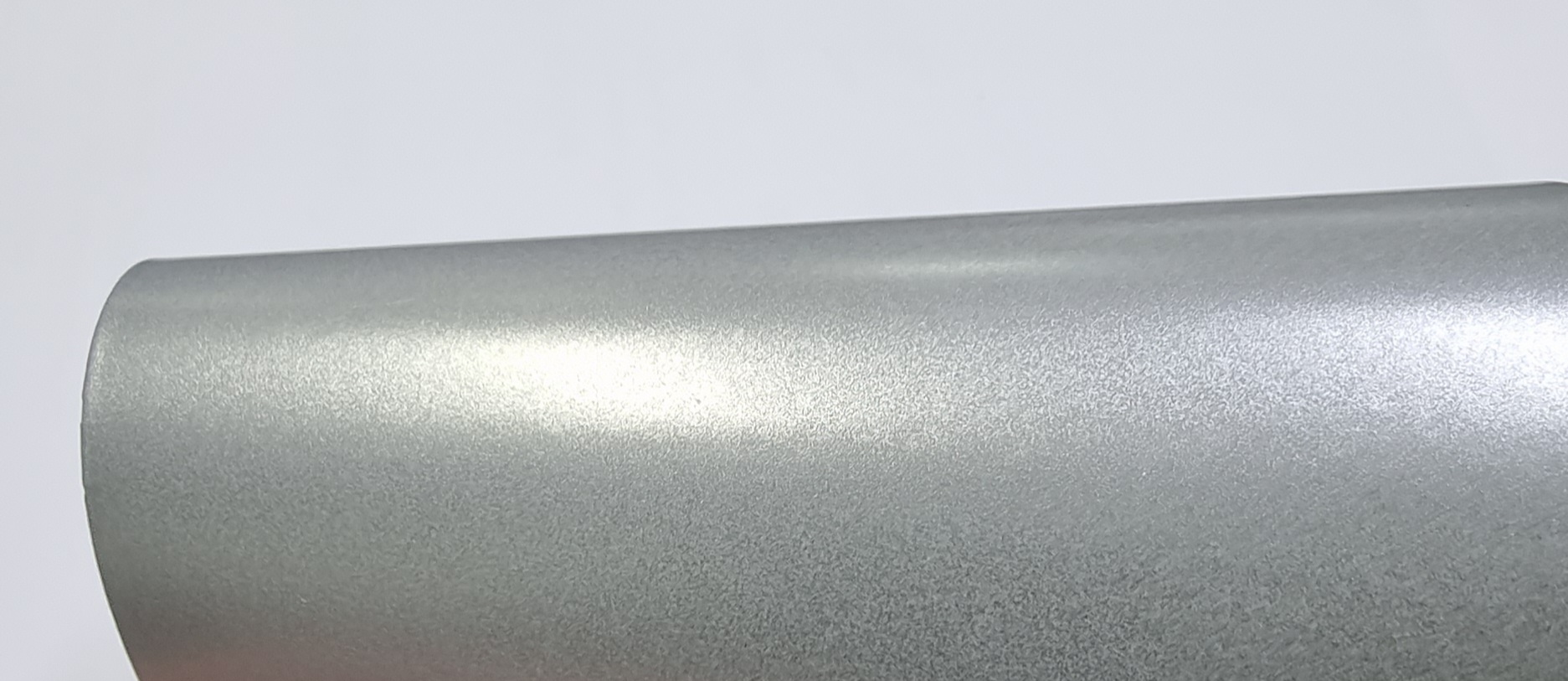

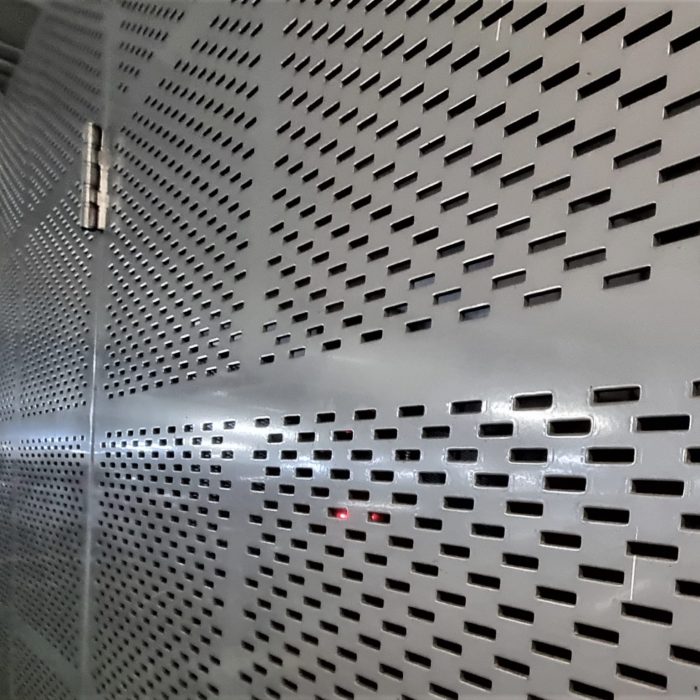

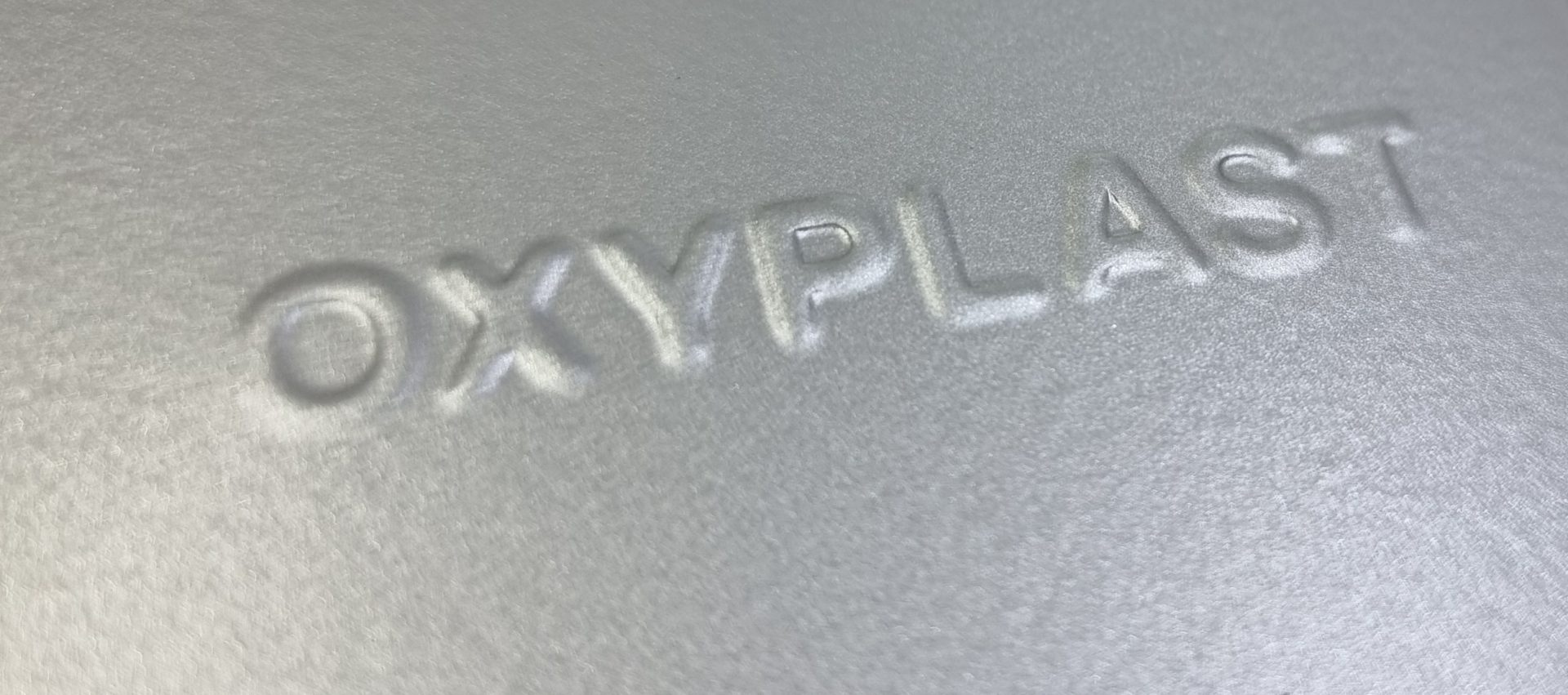

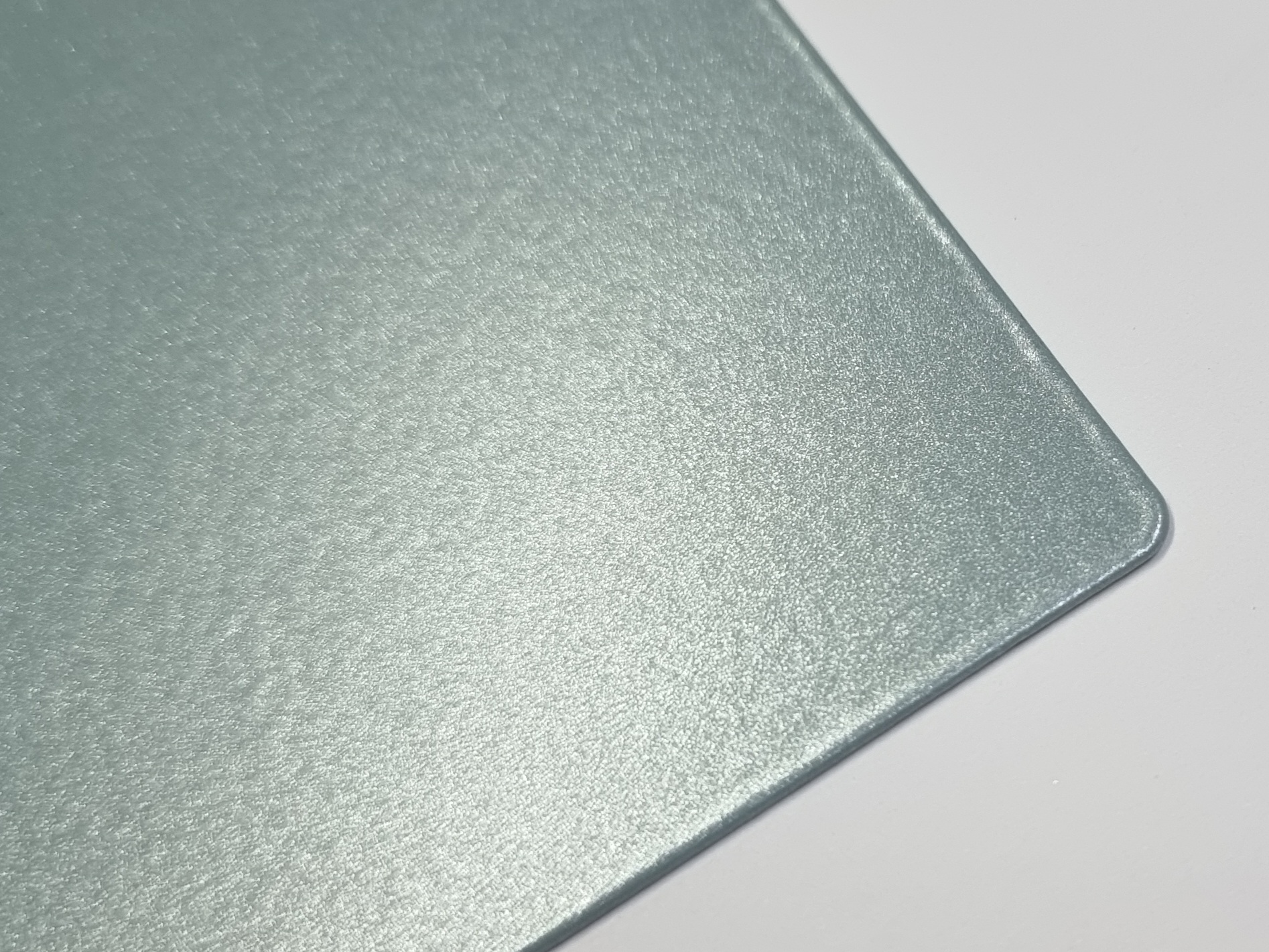

Enhanced Processability Metallics Coating

ENHANCED PROCESSABILITY
METALLICS COATINGS

for easier spray and better finish
Our outdoor durable metallic-finish products, specially formulated for much enhanced processability with improved powder spray characteristics compared to regular metallics. A greater ease of spraying means processing problems associated typically with metallics are greatly minimised, giving improved efficiency and results.
Specific Feature Coatings
R/EP Products – ENHANCED PROCESSABILITY METALLICS
TECHNICAL DATA
Specific Features:

  • Greater ease of powder spray
  • Processing problems associated with metallic-finish powders eg. inconsistent spray pattern, blocking and sputting, patchy finish etc. greatly reduced
  • More consistent, uniform colour and metallic effects
  • Higher powder usage efficiency and production throughout
  • Non-tarnishing, no clear topcoat required

As with all metallics, proper control of the application process parameters is critical. The application & processing guidelines for Oxyplast powders pertaining to metallic-finish & special-finish powder coatings should be followed.

Gloss at 60°: Matt to high-gloss, according to the chosen grade
Metallic Effects: From fine, subtle types to brilliant, sparkle finishes
Colour Range: Wide range available
Powder Curing: 110 mins / 160–200°C, according to the chosen grad
Impact Resistance and flexibility: Good to excellent, depending on the chosen grade
Typical Uses: Architectural hardware, outdoor and indoor furniture, light fixtures etc

Heat-resistant Coatings

HEAT RESISTANT COATINGS

for high-temperature exposures
A series of outdoor durable powder coatings specially formulated for the coating of items frequently exposed to elevated temperatures during use
Specific Feature Coatings

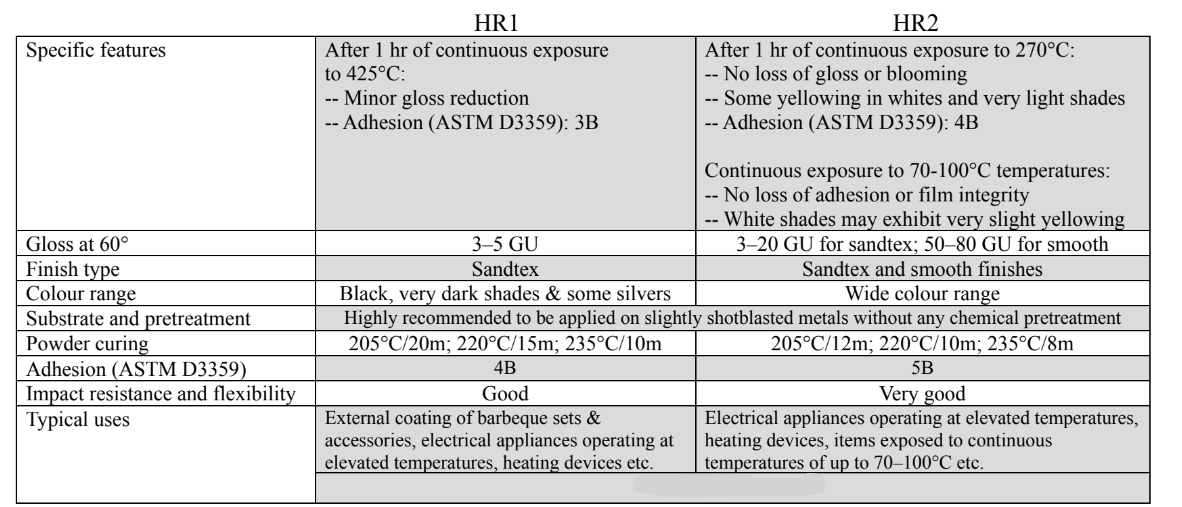

HR1 & HR2 – HEAT-RESISTANT COATINGS
TECHNICAL DATA
Specific Features:

  • After 1 hr of continuous exposure to 425°C:
    — Minor gloss reduction
    — Adhesion (ASTM D3359): 3B

Gloss at 60°: 3–5 GU
Finish Type: Sandtex
Colour Range: Black, very dark shades & some silvers
Substrate & Pretreatment: Highly recommended to be applied on slightly shotblasted metals without any chemical pretreatment
Powder Curing: 205°C/20m; 220°C/15m; 235°C/10m
Adhesion (ASTM D3359): 4B
Impact Resistance and flexibility: Good
Typical Uses: External coating of barbeque sets & accessories, electrical appliances operating at elevated temperatures, heating devices etc

Specific Features:

  • After 1 hr of continuous exposure to 270°C:
    — No loss of gloss or blooming
    — Some yellowing in whites and very light shades
    — Adhesion (ASTM D3359): 4B
  • Continuous exposure to 70-100°C temperatures:
    — No loss of adhesion or film integrity
    — White shades may exhibit very slight yellowing

Gloss at 60°: 3–20 GU for sandtex; 50–80 GU for smooth
Finish Type:Sandtex and smooth finishes
Colour Range:Wide colour range
Substrate & Pretreatment: Highly recommended to be applied on slightly shotblasted metals without any chemical pretreatment
Powder Curing: 205°C/12m; 220°C/10m; 235°C/8m
Adhesion (ASTM D3359): 5B
Impact Resistance and flexibility: Very good
Typical Uses: Electrical appliances operating at elevated temperatures, heating devices, items exposed to continuous temperatures of up to 70–100°C etc

Special-effect Finishes

SPECIAL-EFFECT FINISHES

expanding choices and possibilities
Besides smooth finish and solid colours, our powder coating products are available in a variety of finishes with different visual effects, surface textures and metallic appearance. In general, a majority of our product grades (binder types) can be formulated with these special-effect finishes.
Specific Feature Coatings

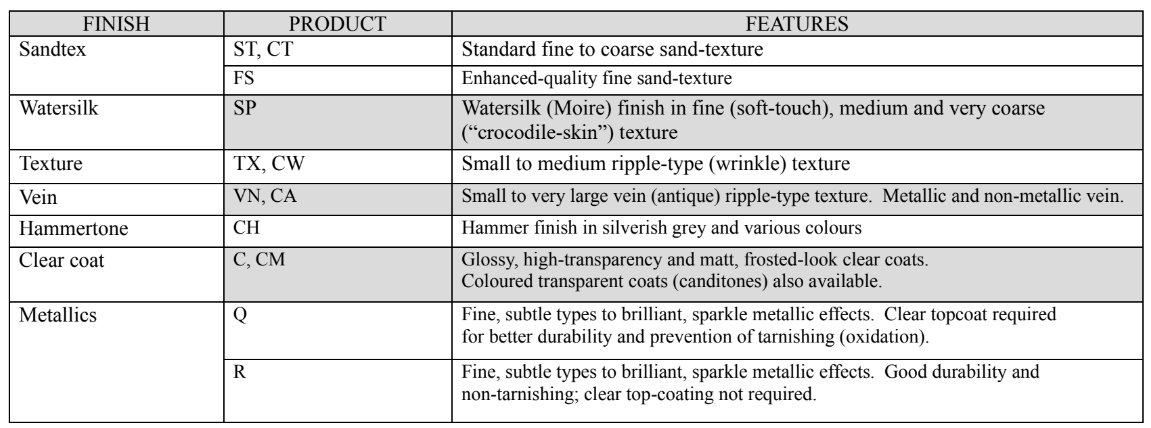

Products and Finishes
TECHNICAL DATA

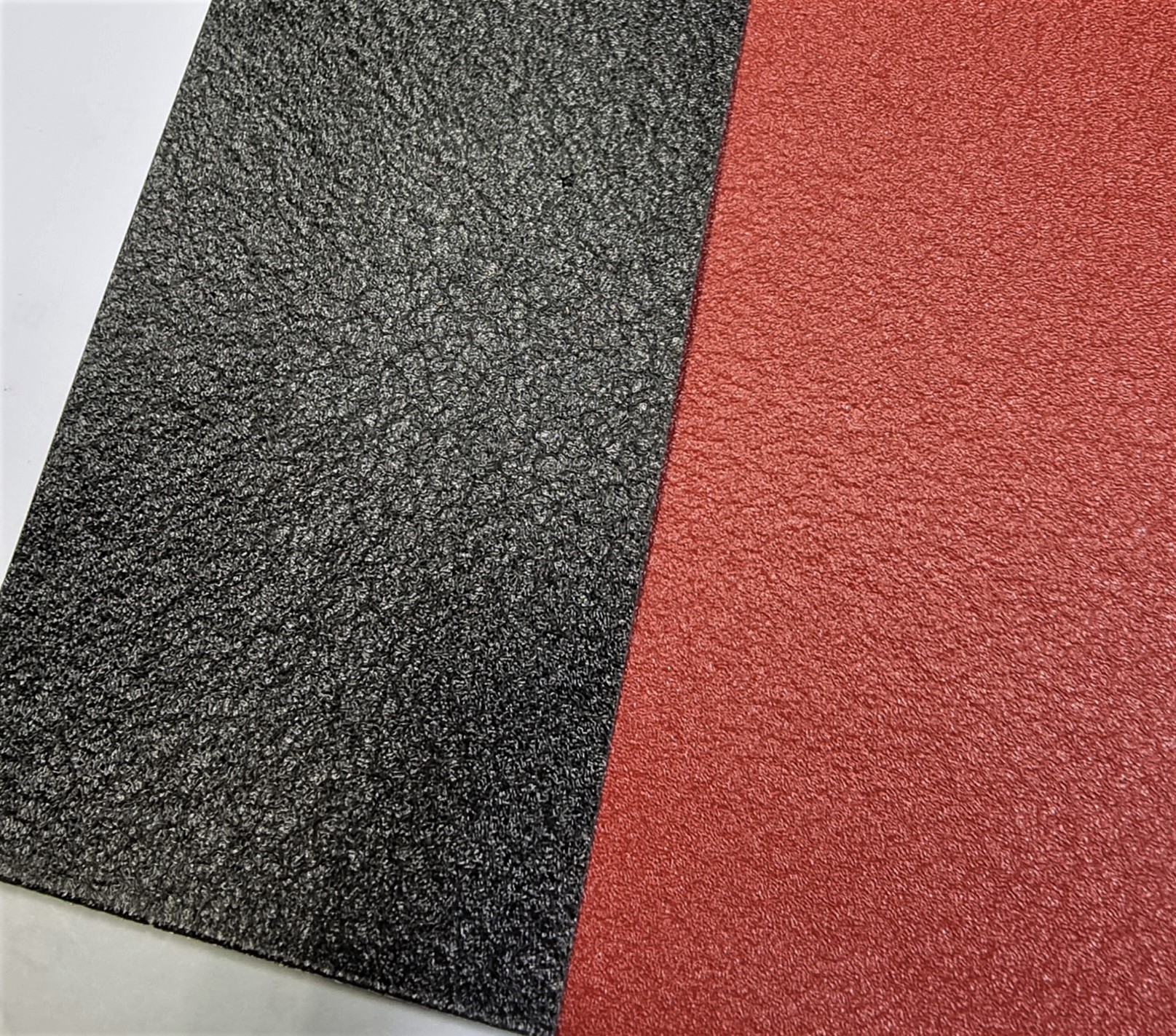

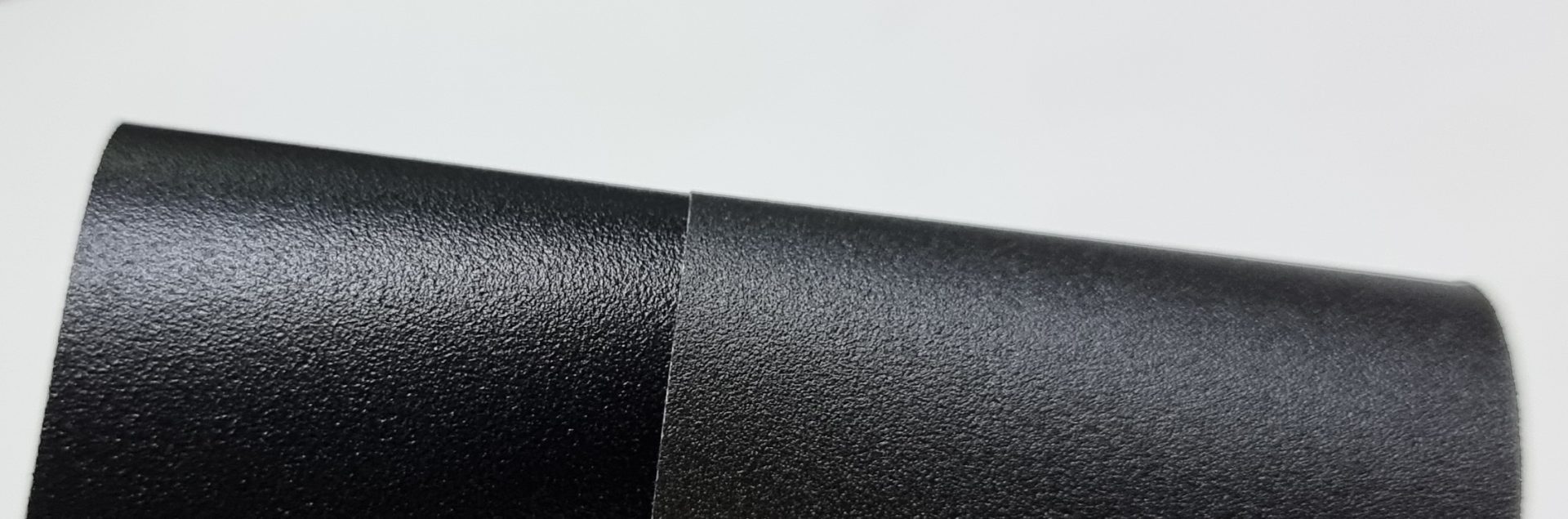

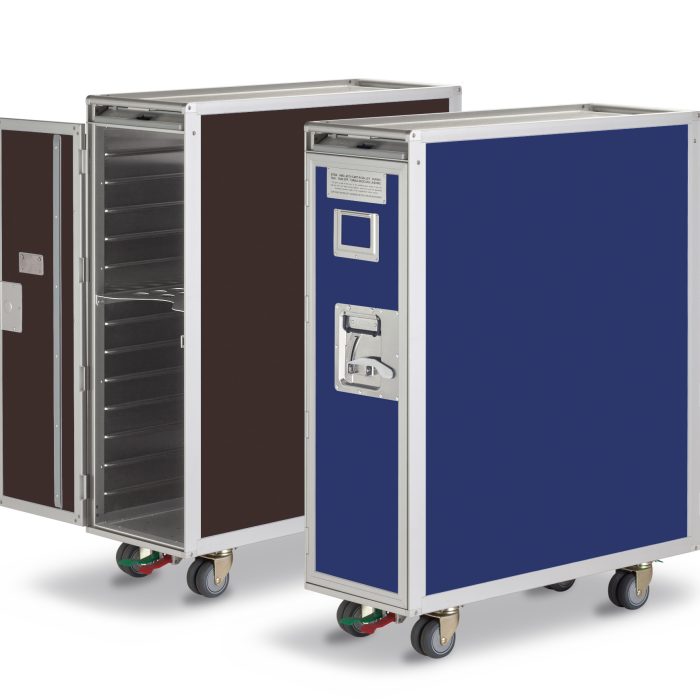

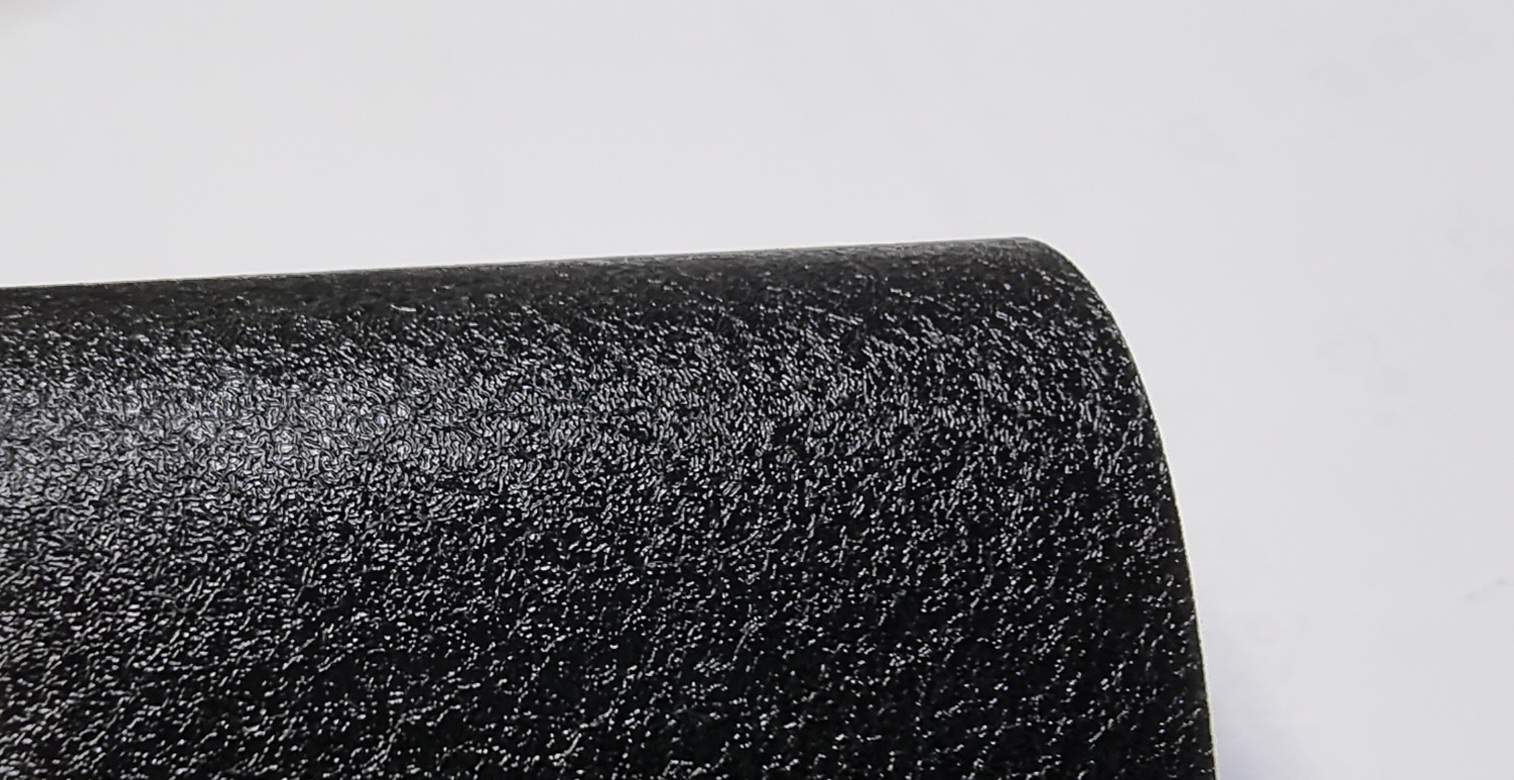

Finish — Sandtex

  • Product & Feature:
    ST, CT — Standard fine to coarse sand-texture
    FS — Enhanced-quality fine sand-texture

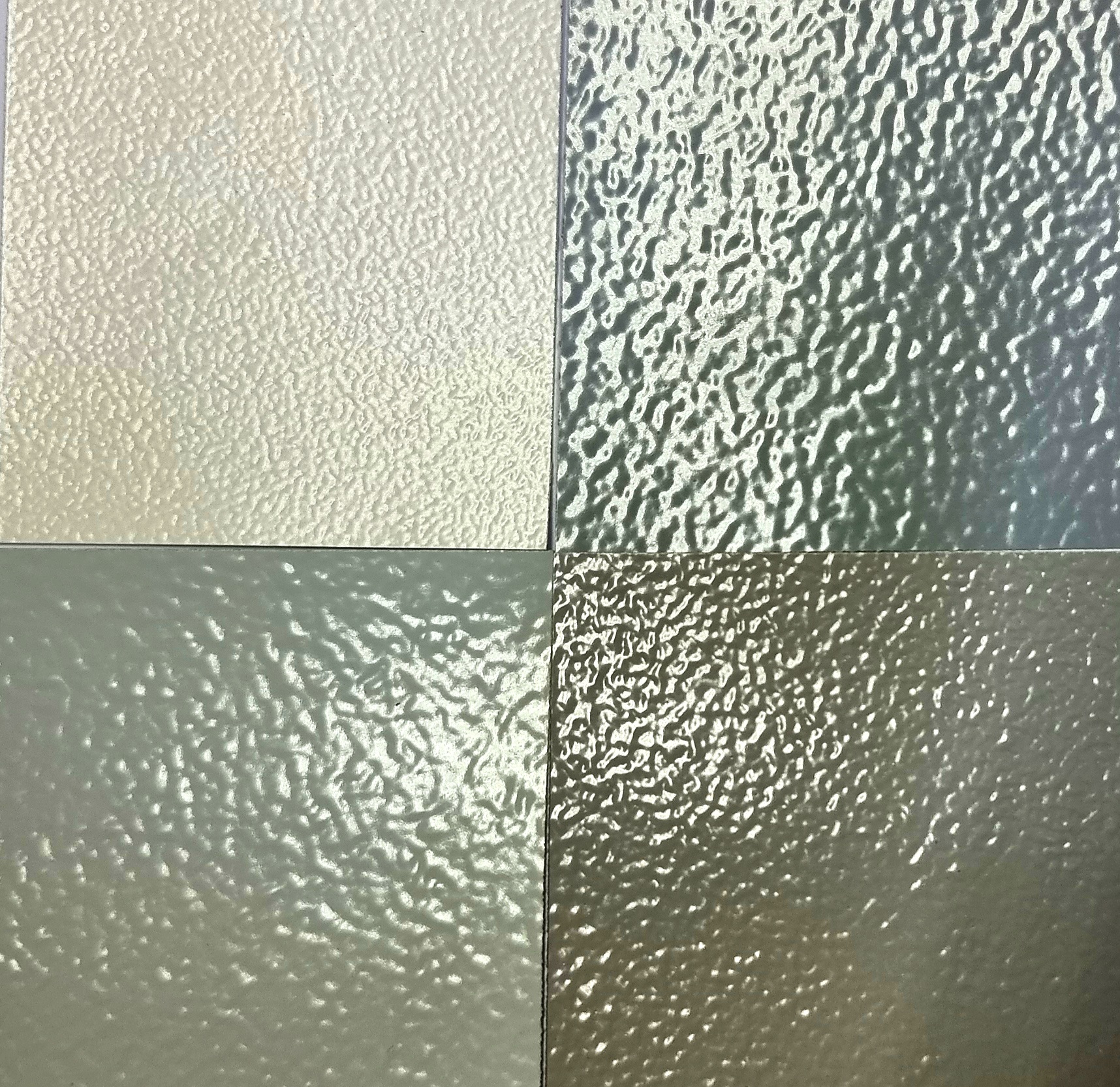

Finish — Walkersilk

  • Product & Feature:
    SP — Watersilk (Moire) finish in fine (soft-touch), medium and very coarse(“crocodile-skin”) texture

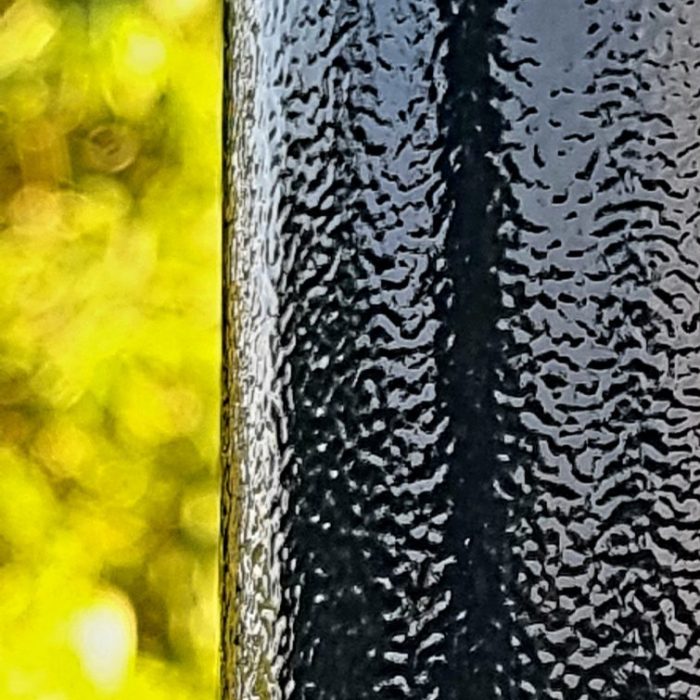

Finish — Texture

  • Product & Feature:
    TX, CW — Small to medium ripple-type (wrinkle) texture

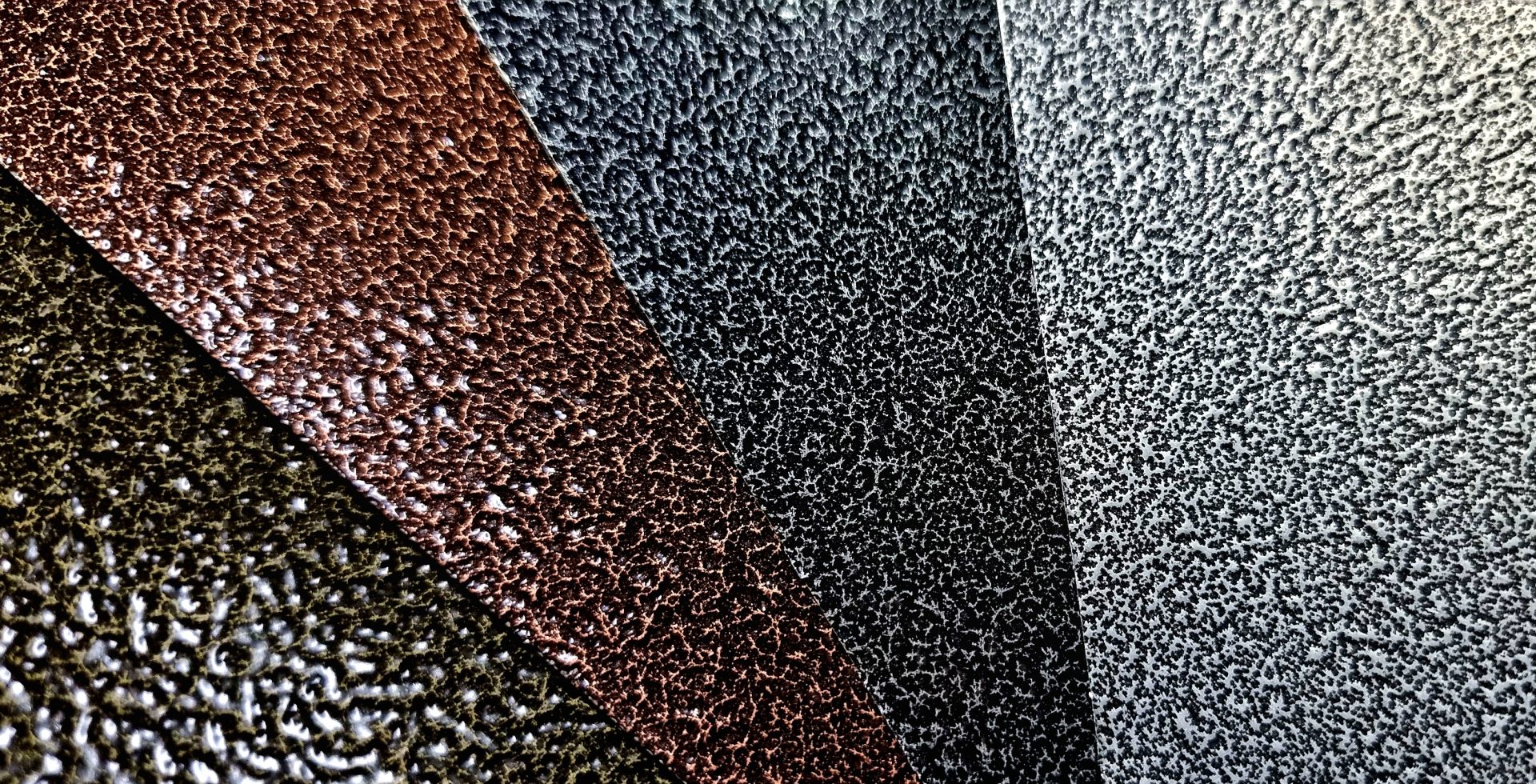

Finish — Vein

  • Product & Feature:
    VN, CA — Small to very large vein(antique) ripple-type texture. Metallic and non-metallic vein.

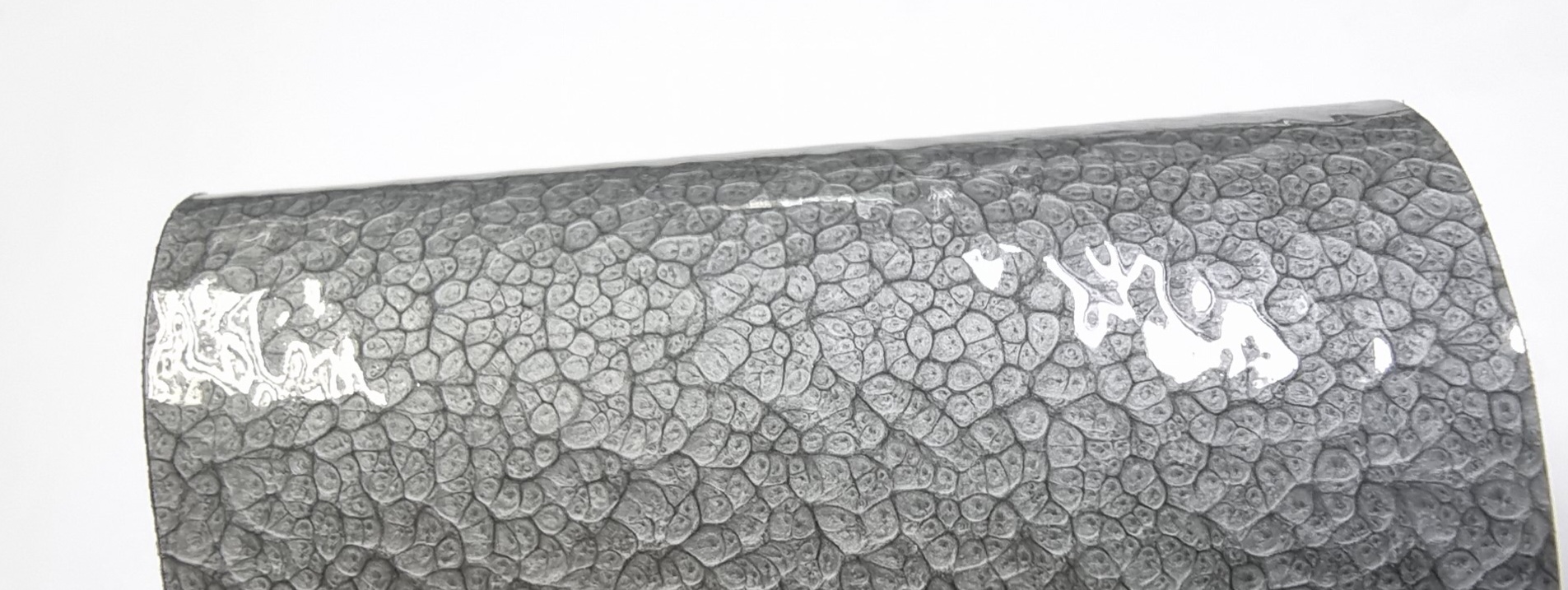

Finish — Hammertone

  • Product & Feature:
    CH — Hammer finish in silverish grey and various colours

Finish — Clear Coat

  • Product & Feature:
    C, CM — Glossy, high-transparency and matt, frosted-look clear coats. Coloured transparent coats (canditones) also available.

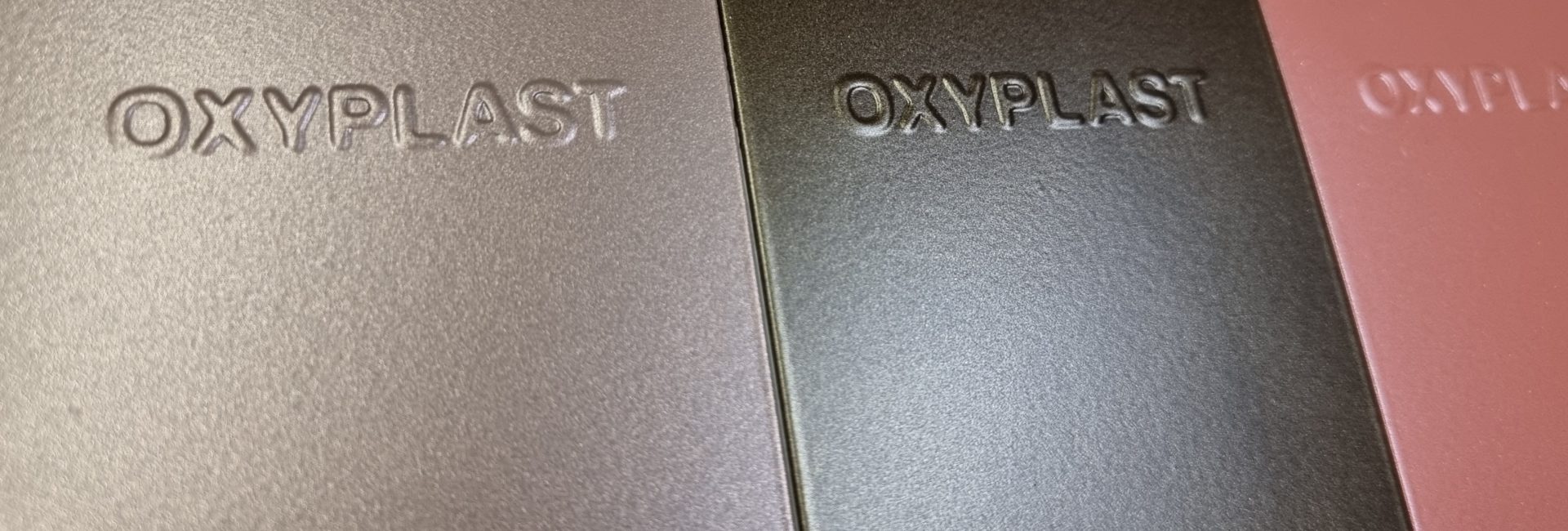

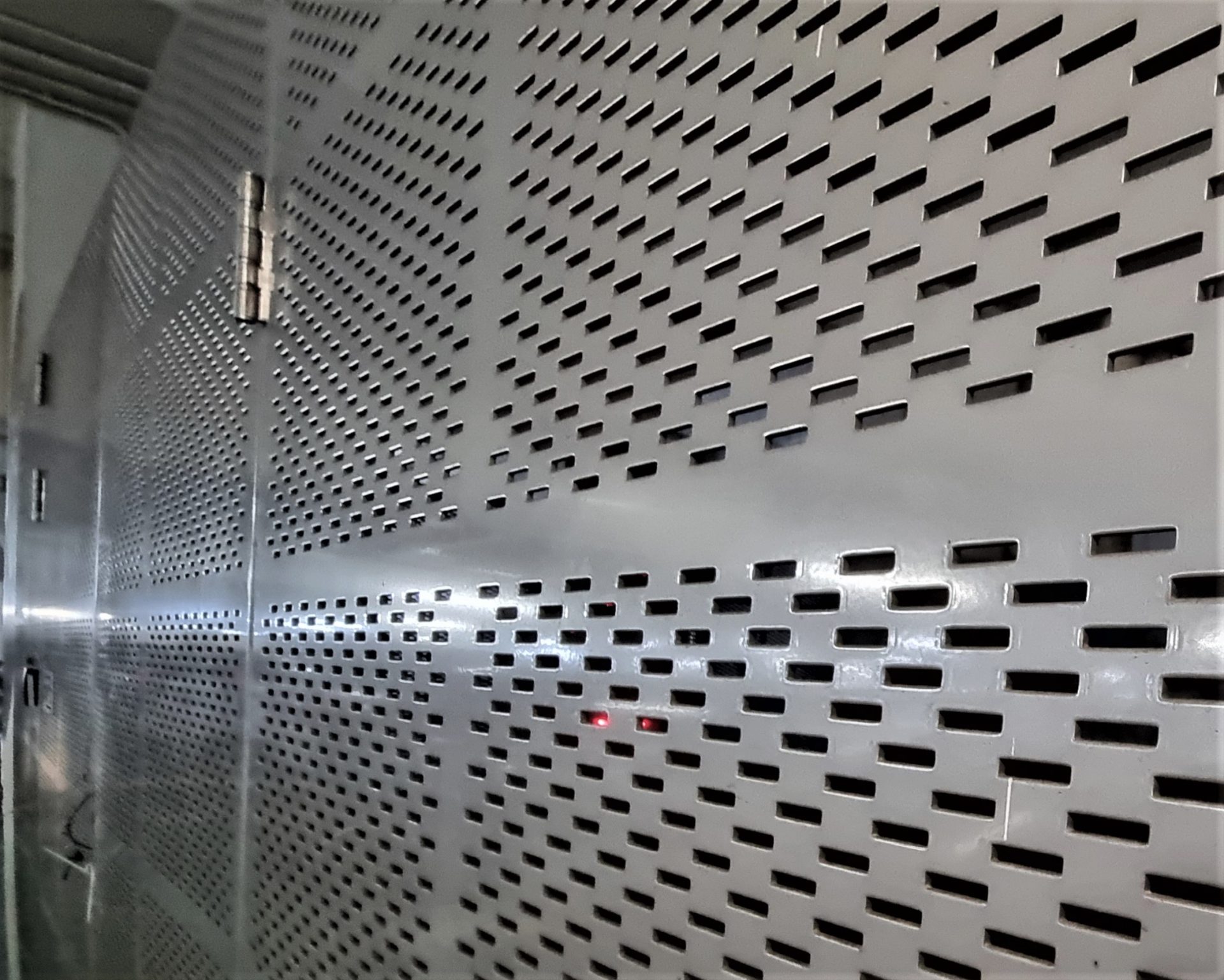

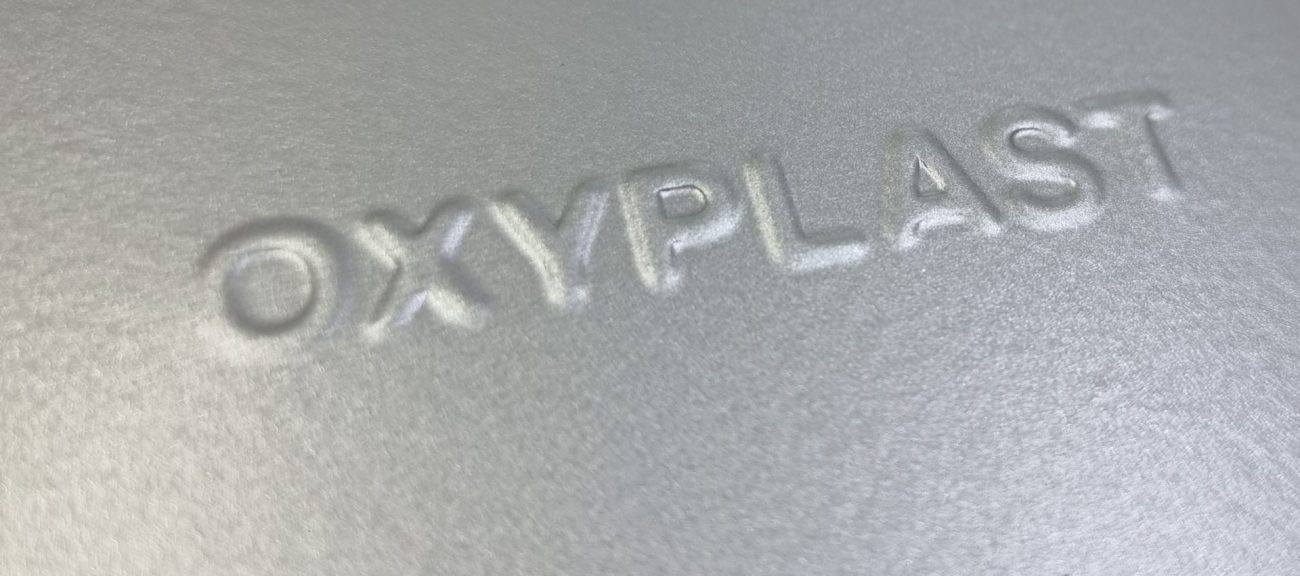

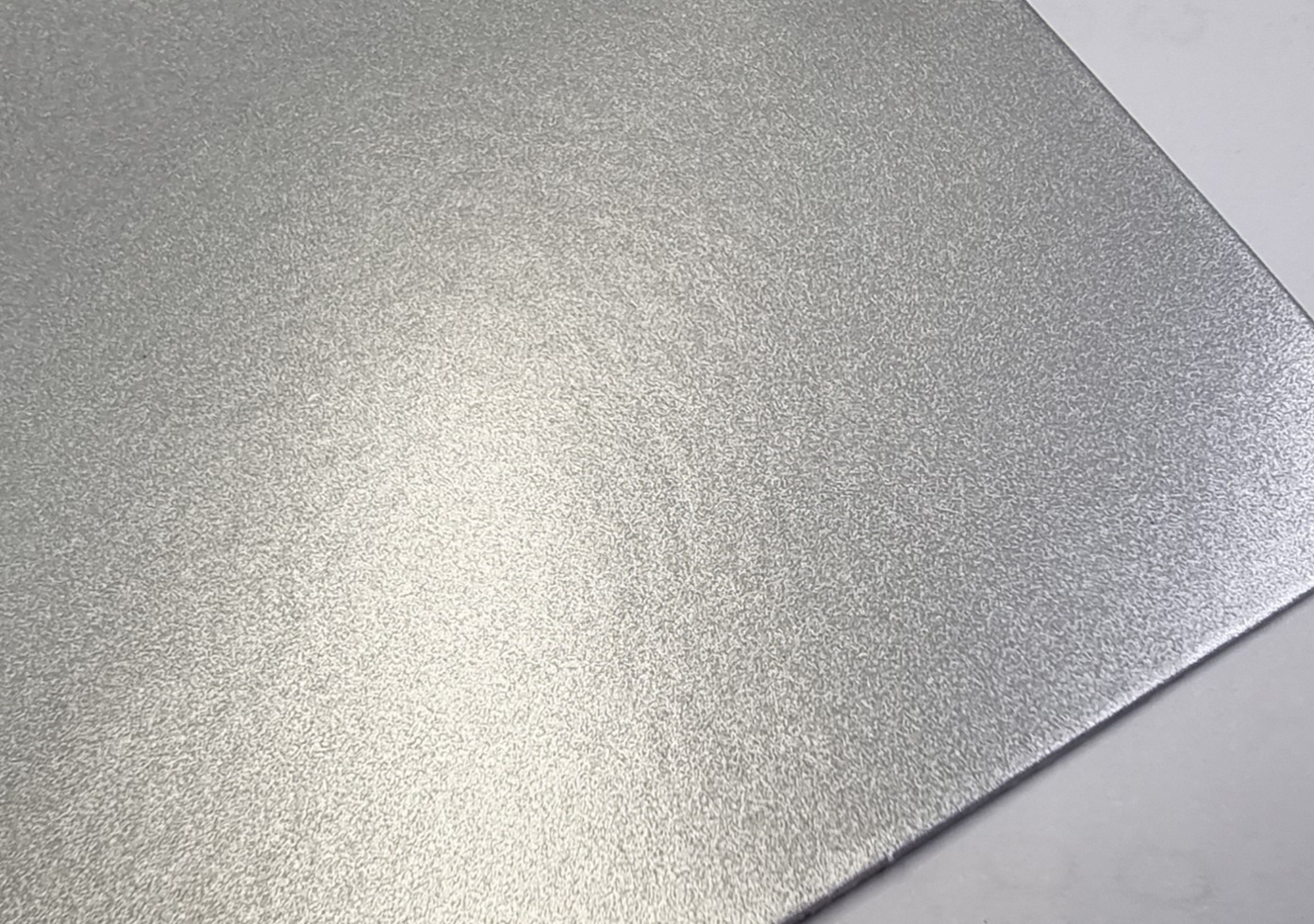

Finish — Metallics

  • Product & Feature:
    Q — Fine, subtle types to brilliant, sparkle metallic effects. Clear topcoat required for better durability and prevention of tarnishing (oxidation).
    R — Fine, subtle types to brilliant, sparkle metallic effects. Good durability and non-tarnishing; clear top-coating not required.

Tough & Durable Polyurethane Coatings

TOUGH AND DURABLE
POLYURETHANE COATINGS

for that extra protection
A series of outdoor durable polyurethane powder coatings formulated with special resins and materials for increased resistance against chemicals and physical damage.
Specific Feature Coatings
PU5 – ANTI-GRAFFITI
PU6 – INCREASED HARDNESS
TECHNICAL DATA
Specific Features:

  • Excellent resistance to solvents
  • Easy removal of graffiti by solvent wipe
  • Graffiti from common permanent markers easily wiped away with xylene or similar solvents without affecting coating appearance
  • Not affected by short-duration contact with MEK
  • Excellent resistance to whiteboard markers.

Gloss at 60°: Satin-high gloss: 40-90 GU
Colour Range: Full range available, with whites showing overbake yellowing for PU6
Powder Curing: 205°C/15-17mins
Impact Resistance and flexibility: Good
Typical Uses: Graffiti-prone public amenities, furniture, train interiors, shelters, signages, whiteboards etc

Specific Features:

  • 4H Pencil hardness
  • Tested and classified for fire-retardance properties according to EN 13501 – 1:2018 (Fire Classification of Construction Products and Building Elements–Part 1)
  • Classification: A2-s1,d0

Gloss at 60°: Satin-high gloss: 35-80 GU
Colour Range: Full range available, with whites showing overbake yellowing for PU6
Powder Curing: 200°C/15-20 mins
Impact Resistance and flexibility: Excellent
Typical Uses: Architectural hardware, construction products and building elements, outdoor furniture etc
