EPOXY for general applications

EPOXY

FOR GENERAL APPLICATIONS
–  E6     E5     E29
A series of decorative and protective pure epoxy powder coatings for general indoor use, with a wide range of gloss levels from super matt to satin to glossy finishes to choose from.

Super matt to satin to glossy finish

Very good to excellent flow-out

Very good overall physical and chemical resistance

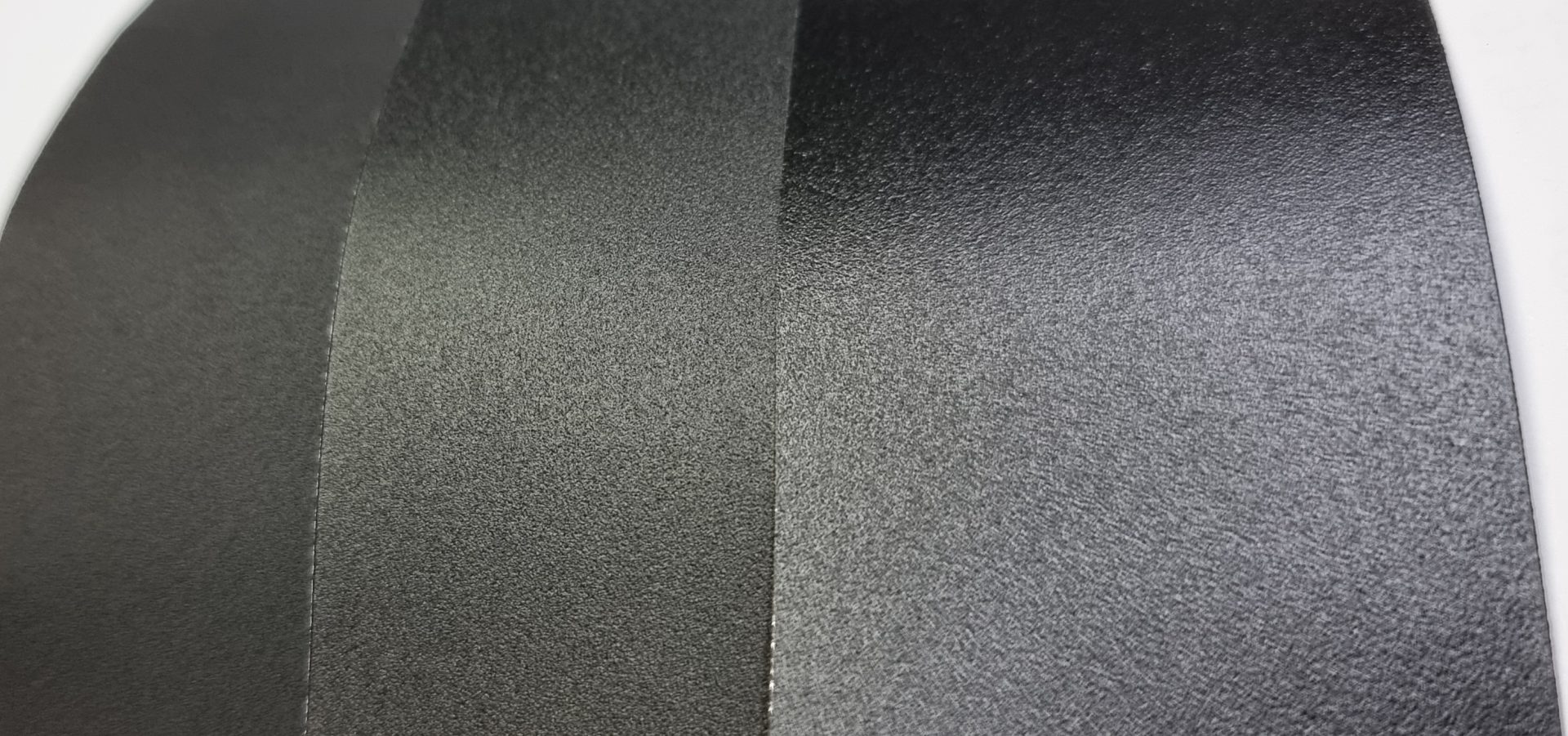

Smooth, texture, sandtexture, metallics finishes etc

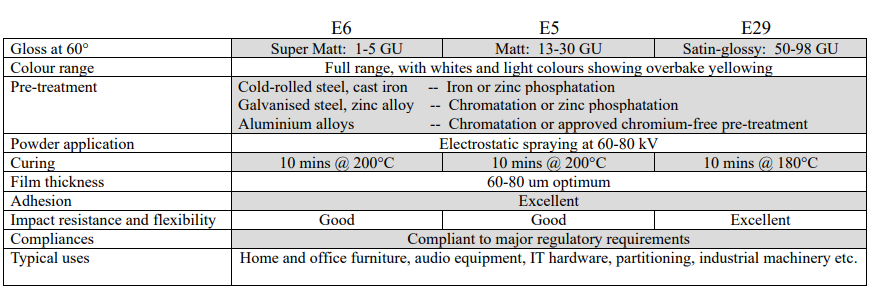

TECHNICAL DATA

Super Matt: 1-5 GU
Colour Range: Full range, with whites and light colours showing overbake yellowing
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 10 mins @ 200°C
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Good
Compliances: Compliant to major regulatory requirements

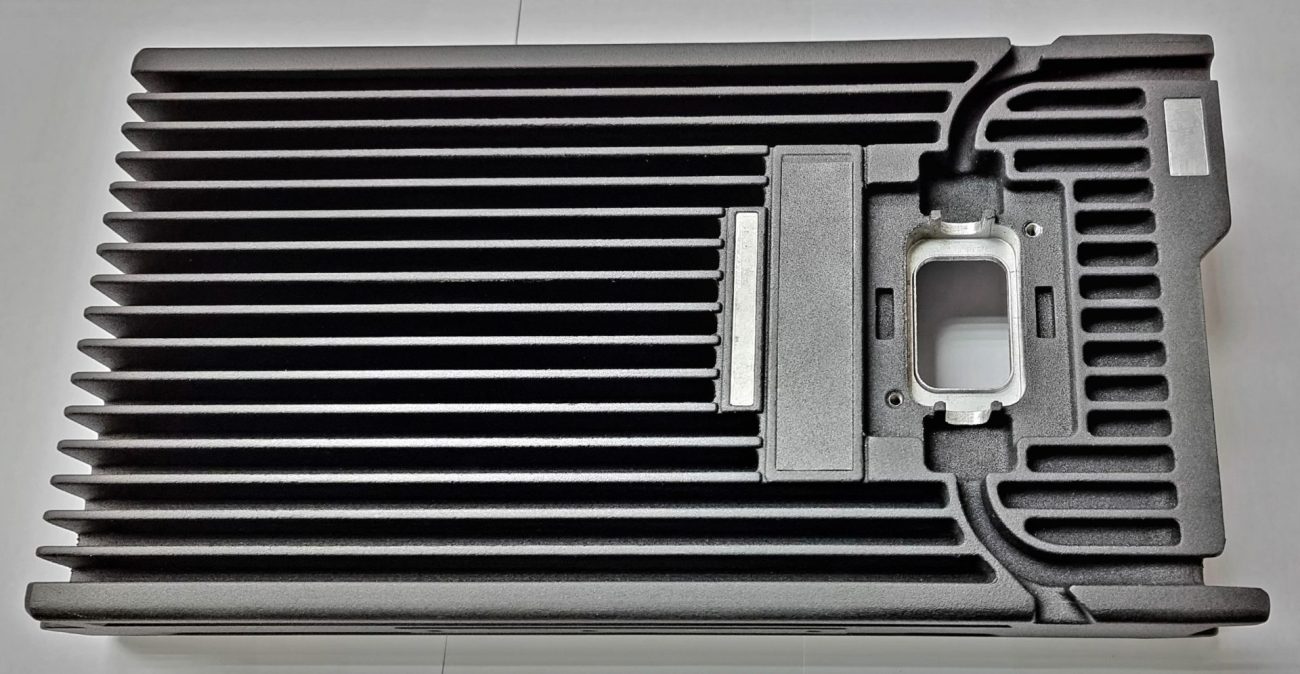

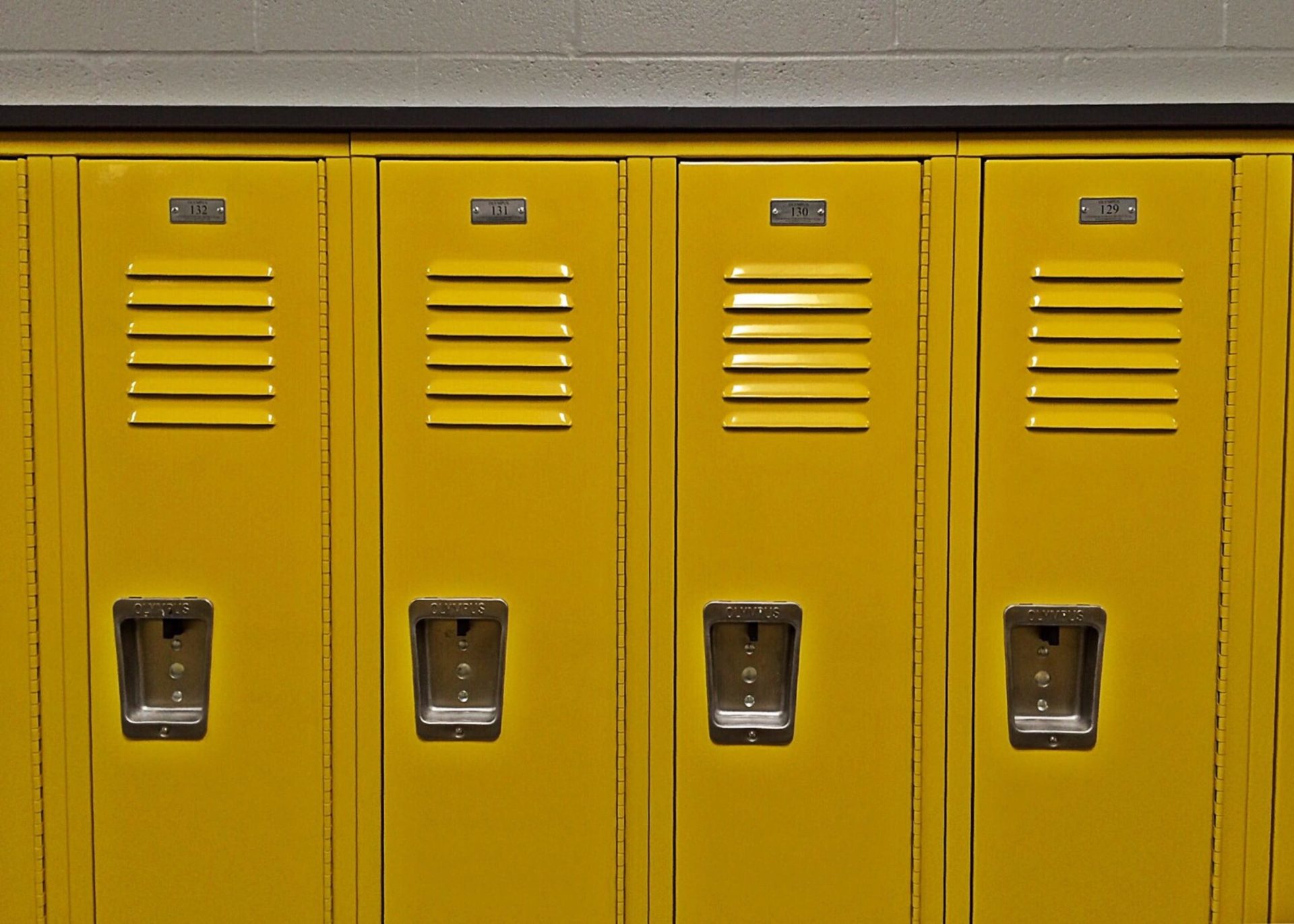

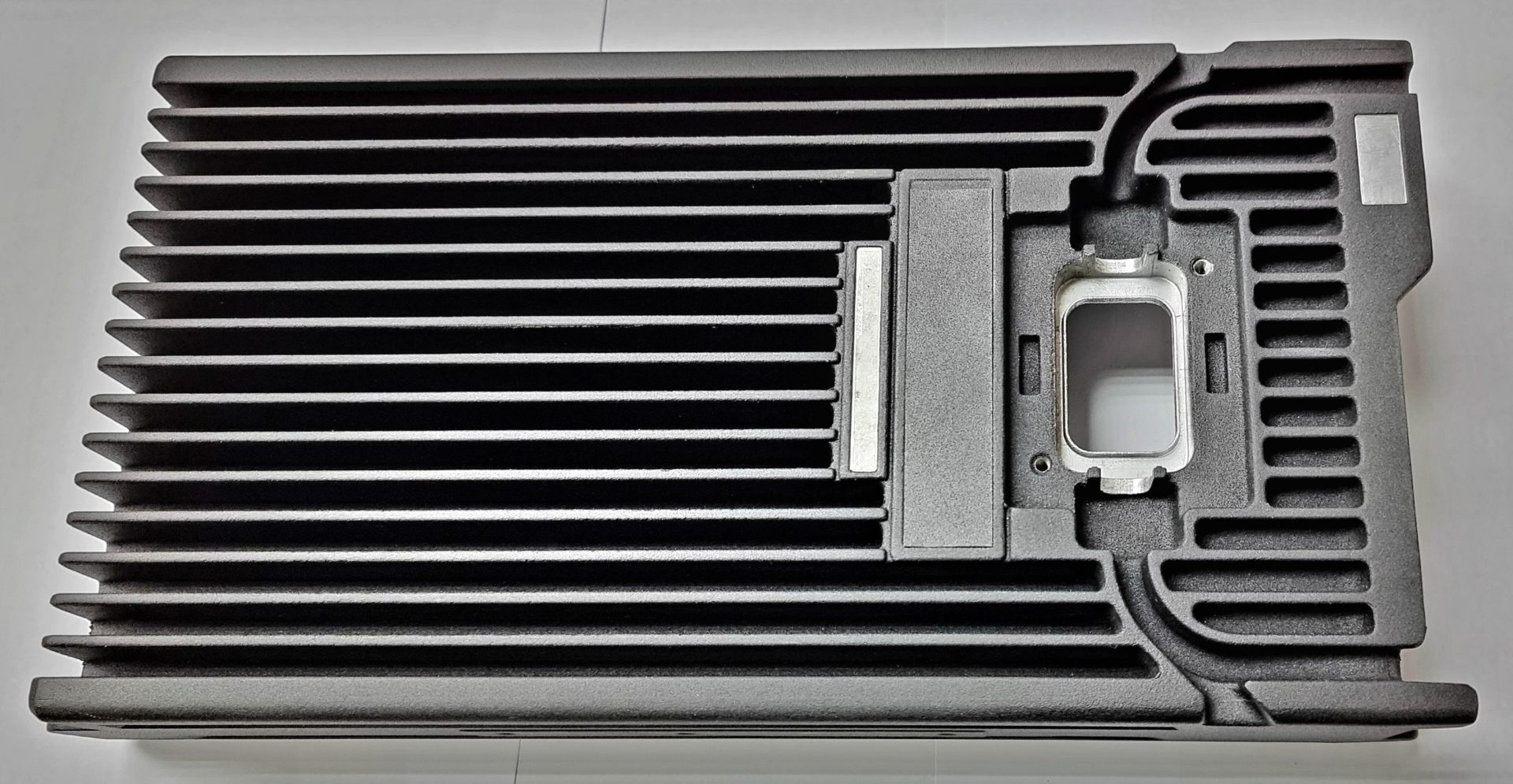

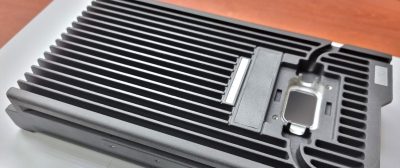

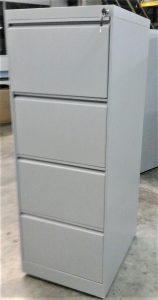

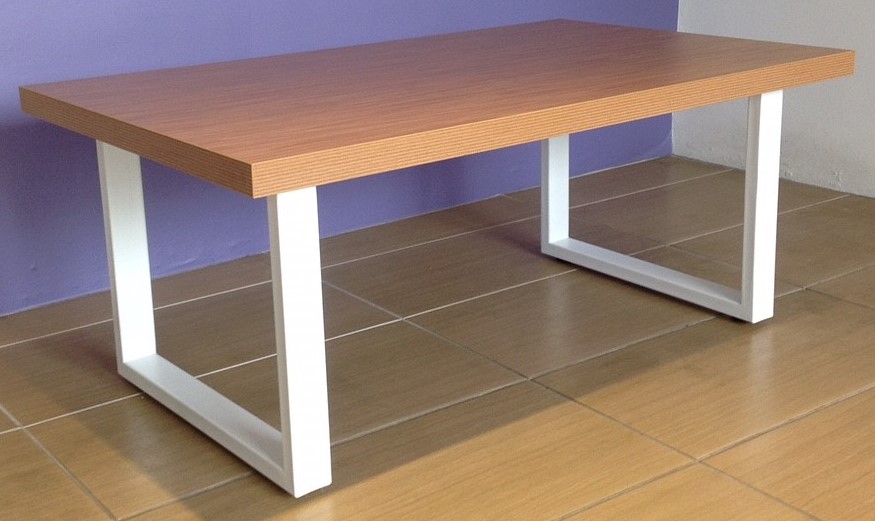

Typical Uses: Home and office furniture, audio equipment, IT hardware, partitioning, industrial machinery etc


Matt: 13-30 GU
Colour Range: Full range, with whites and light colours showing overbake yellowing
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 10 mins @ 200°C
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Good
Compliances: Compliant to major regulatory requirements
Typical Uses: Home and office furniture, audio equipment, IT hardware, partitioning, industrial machinery etc


Satin-glossy: 50-98 GU
Colour Range: Full range, with whites and light colours showing overbake yellowing
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 10 mins @ 180°C
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Excellent
Compliances: Compliant to major regulatory requirements
Typical Uses: Home and office furniture, audio equipment, IT hardware, partitioning, industrial machinery etc

EPOXY Primer for Corrosion Resistance

EPOXY PRIMER

FOR CORROSION RESISTANCE

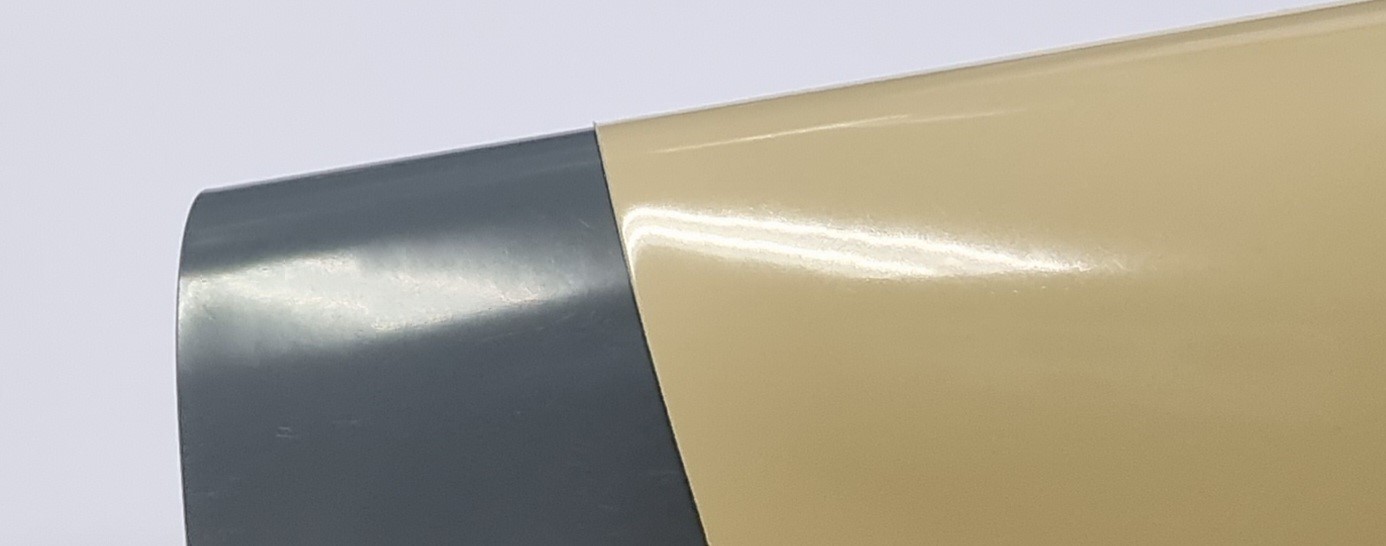

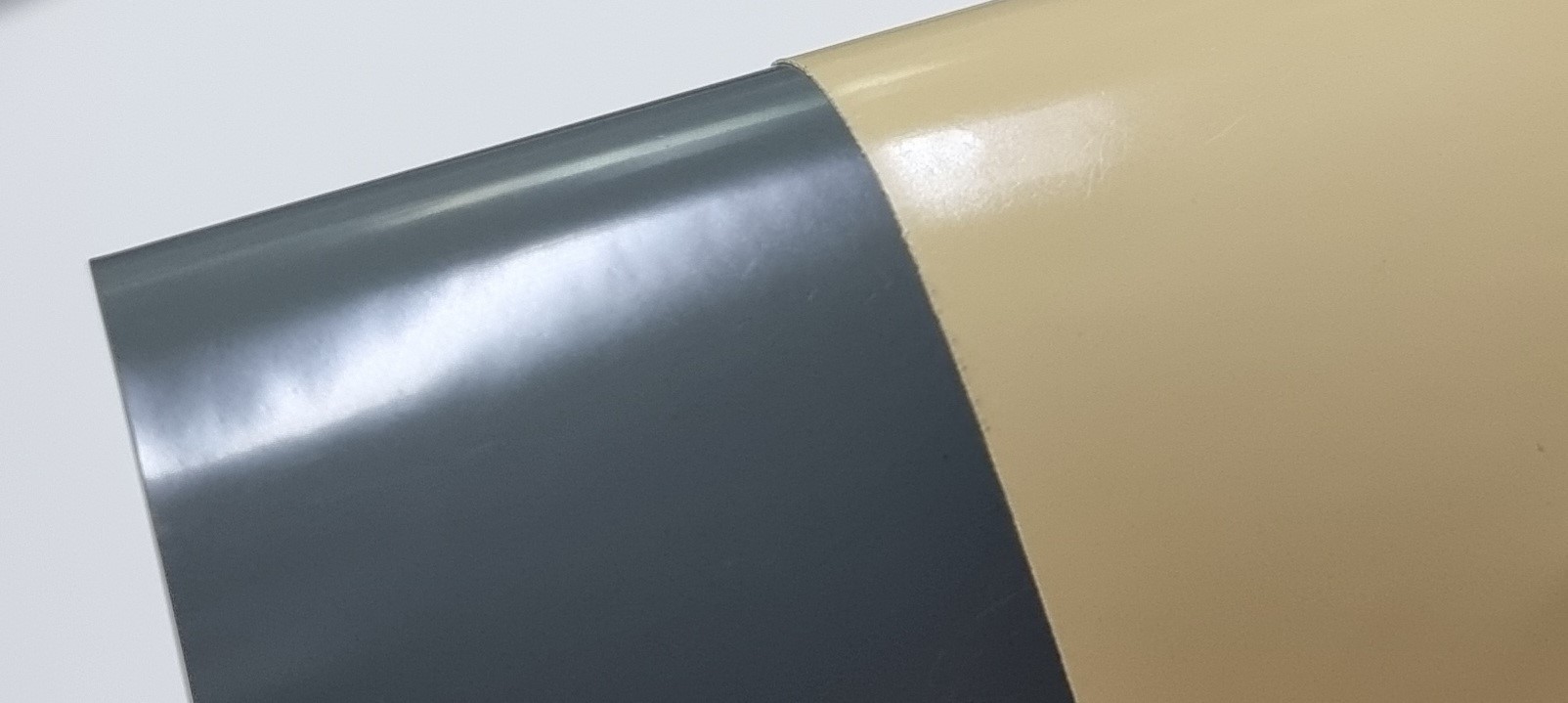

Our epoxy powder coating primers for enhanced protection in aggressive environments. 2-coat or 3-coat systems consisting of one of these primers and suitable powder top-coats will have excellent corrosion resistance in demanding outdoor and indoor conditions.

Excellent corrosion protection in combination with suitable outdoor or indoor topcoats

Standard Primer E49

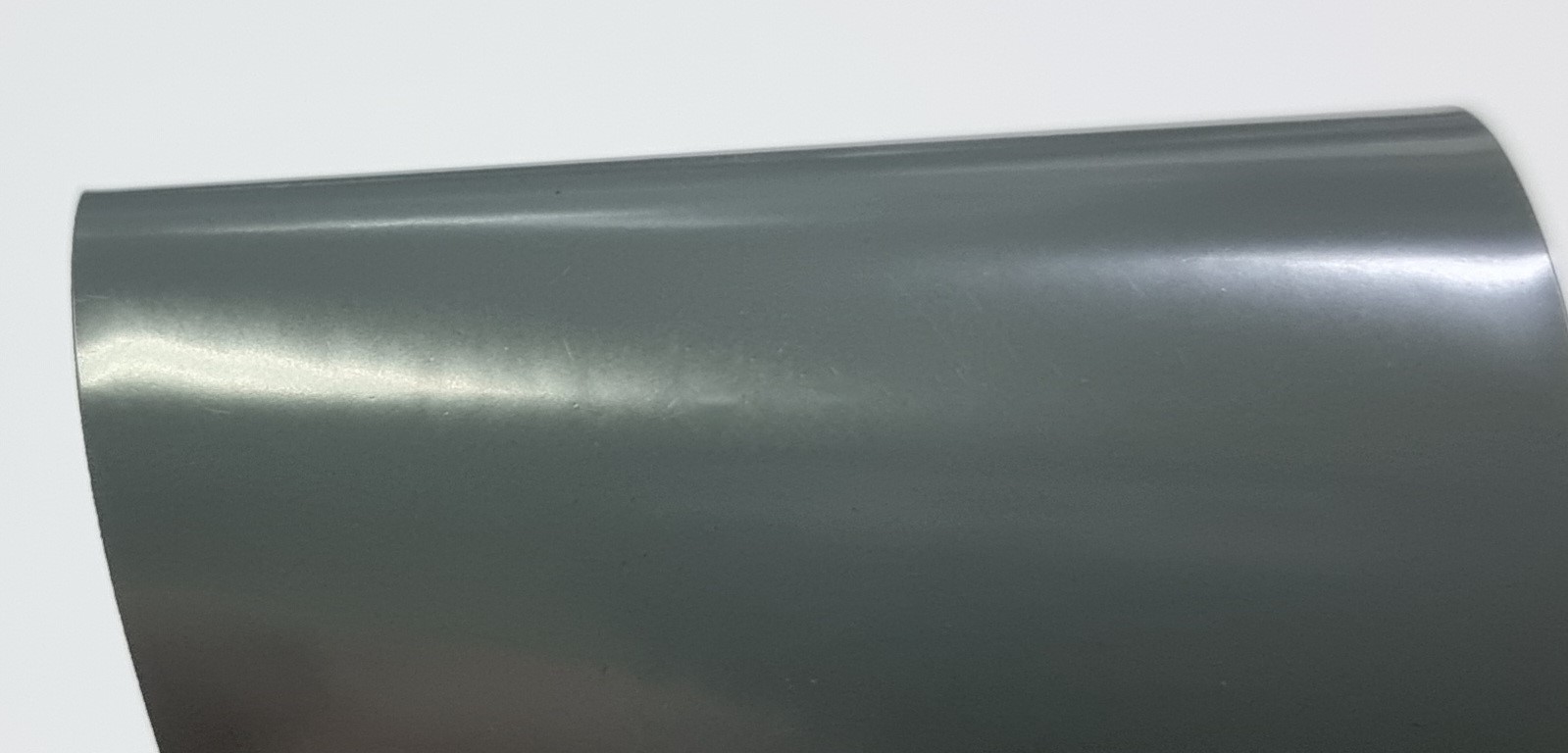

Semi-gloss, typically light medium grey shade. Can be used also as a single coat,
With very good chemical resistance, in various colour shades

Zinc-rich Primer E29/80290/CS3 (Zincoprime)

Semi-gloss, medium grey. Only for shot-blasted steel substrates.

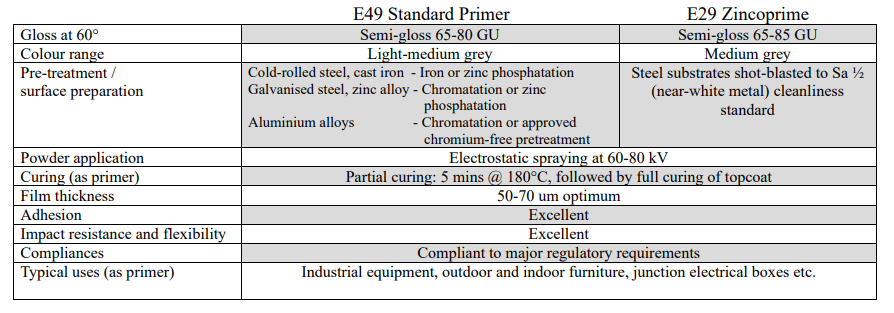

TECHNICAL DATA

Gloss at 60°C: Semi-gloss 65-80 GU
Colour Range: Light-medium grey
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pretreatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing (as primer): Partial curing: 5 mins @ 180°C, followed by full curing of topcoat
Film Thickness: 50-70 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Excellent
Compliances: Compliant to major regulatory requirements
Typical Uses (as primer): Industrial equipment, outdoor and indoor furniture, junction electrical boxes etc


Gloss at 60°C: Semi-gloss 65-85 GU
Colour Range: Medium grey
Pre-treatment:

  • Steel substrates shot-blasted to Sa½ (near-white metal) cleanliness standard

Powder Application: Electrostatic spraying at 60-80 kV
Curing (as primer): Partial curing: 5 mins @ 180°C, followed by full curing of topcoat
Film Thickness: 50-70 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Excellent
Compliances: Compliant to major regulatory requirements
Typical Uses (as primer): Industrial equipment, outdoor and indoor furniture, junction electrical boxes etc

EPOXY Insulative Coating

EPOXY INSULATIVE COATING

FOR ELECTRICAL INSULATION
A functional epoxy powder coating specially formulated for the insulation of electrical items and components. With excellent insulative and mechanical properties, chemical resistance and very good flow-out.

Available in a wide colour range

High dielectric strength, flame-retardance, thermal resistance, flexibility etc

Very good flow-out, with excellent film toughness and chemical resistance

Available in 2 versions

For electrostatic gun spraying and for fluidised bed application

TECHNICAL DATA

Gloss at 60°C: Satin-glossy 50-98 GU
Colour Range: Full range, with whites and light colours showing overbake yellowing
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pretreatment

Powder Application: Electrostatic spraying at 60-80 kV or fluidised bed application
Curing: Adjustable reactivity depending on requirement
Film Thickness: 60-80 um; up to 400 um possible with pre-heating
Adhesion: Excellent
Impact resistance and flexibility: Excellent
Compliances: Compliant to major regulatory requirements

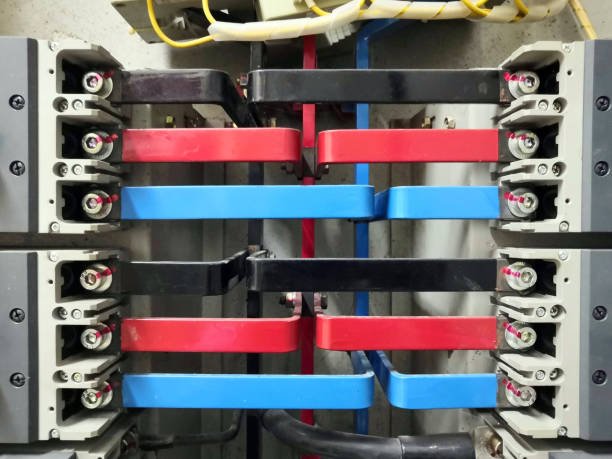

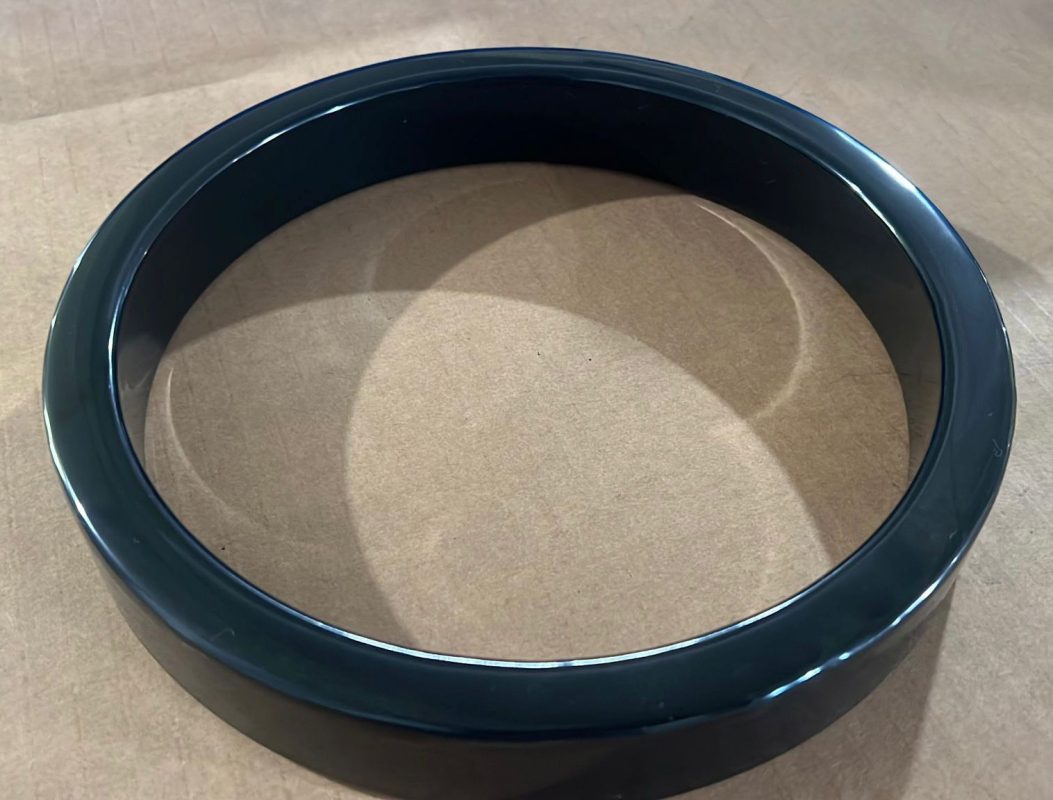

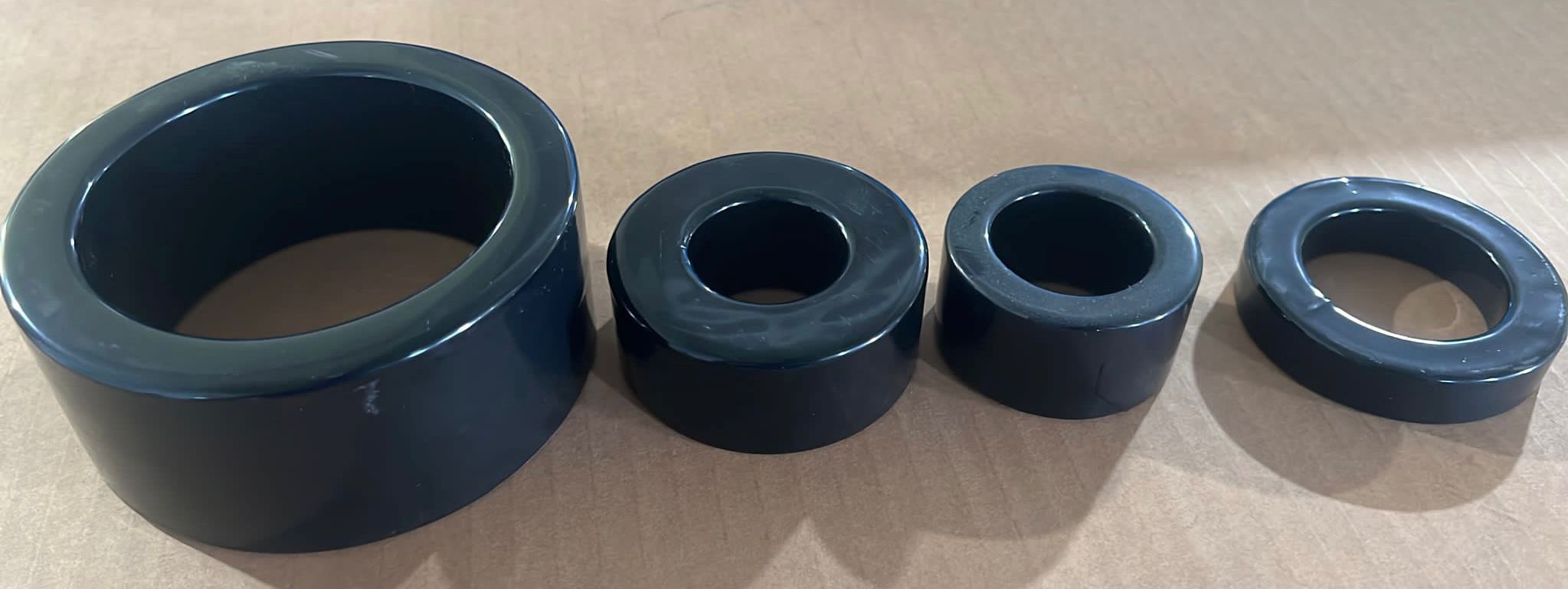

Typical Uses: Copper busbars and wires, transformer coils, rotors and stators, electric vehicle battery pack, motor and cooling systems etc

EPOXY Polyester Hybrid

EPOXY-POLYESTER HYBRID

FOR GENERAL APPLICATIONS
A series of decorative and protective epoxy-polyesterhybrid powder coatings for general indoor use, with a wide range of gloss levels from very matt to satin to glossy finishes to choose from

Matt to satin to glossy finish with very good to excellent flow-out

Very good overall physical and chemical resistance

Satin-glossy finish available in low-cure grade

Smooth, texture, sand texture, metallics finishes etc

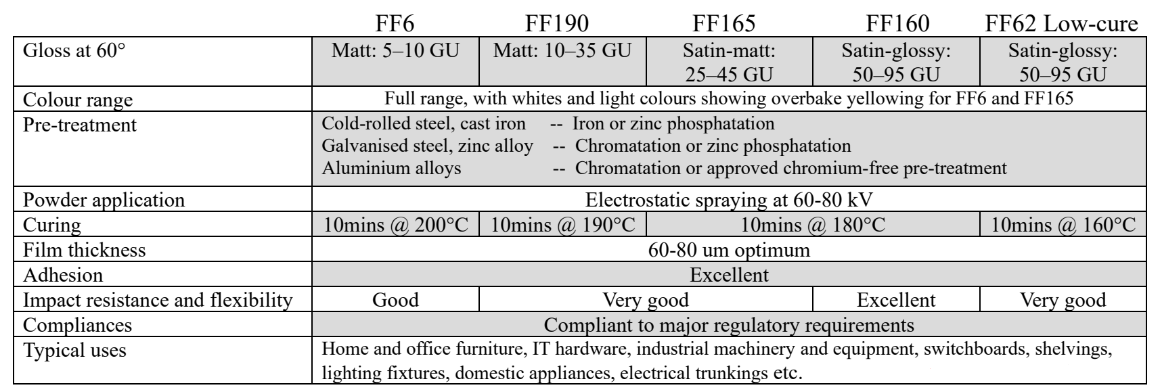

TECHNICAL DATA

Gloss at 60°C: Matt 5-10 GU
Colour Range: Full range, with whites and light colours showing overbake yellowing for FF6 and FF165
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 10 mins @ 200°C
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Good
Compliances: Compliant to major regulatory requirements

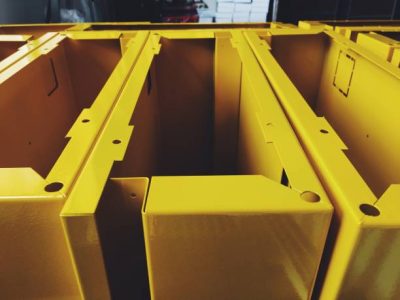

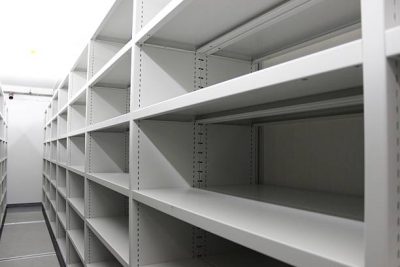

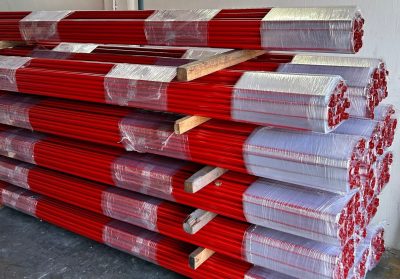

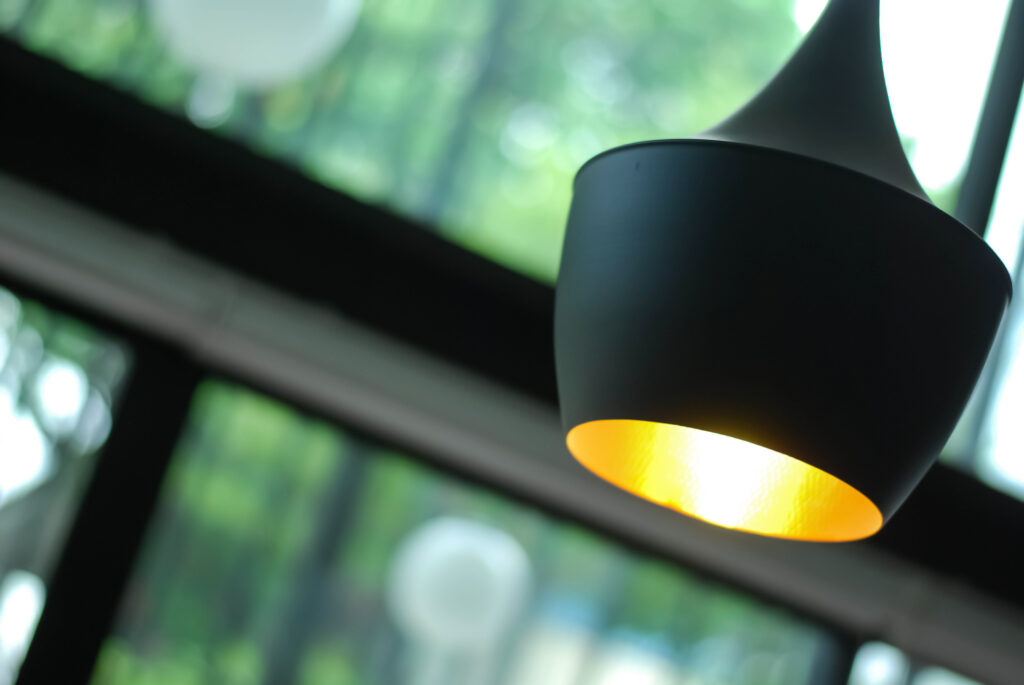

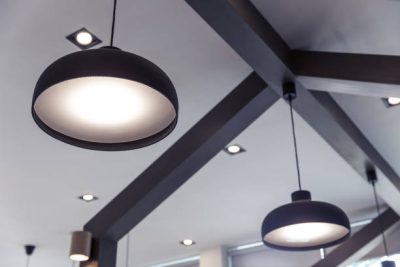

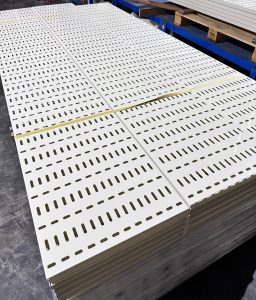

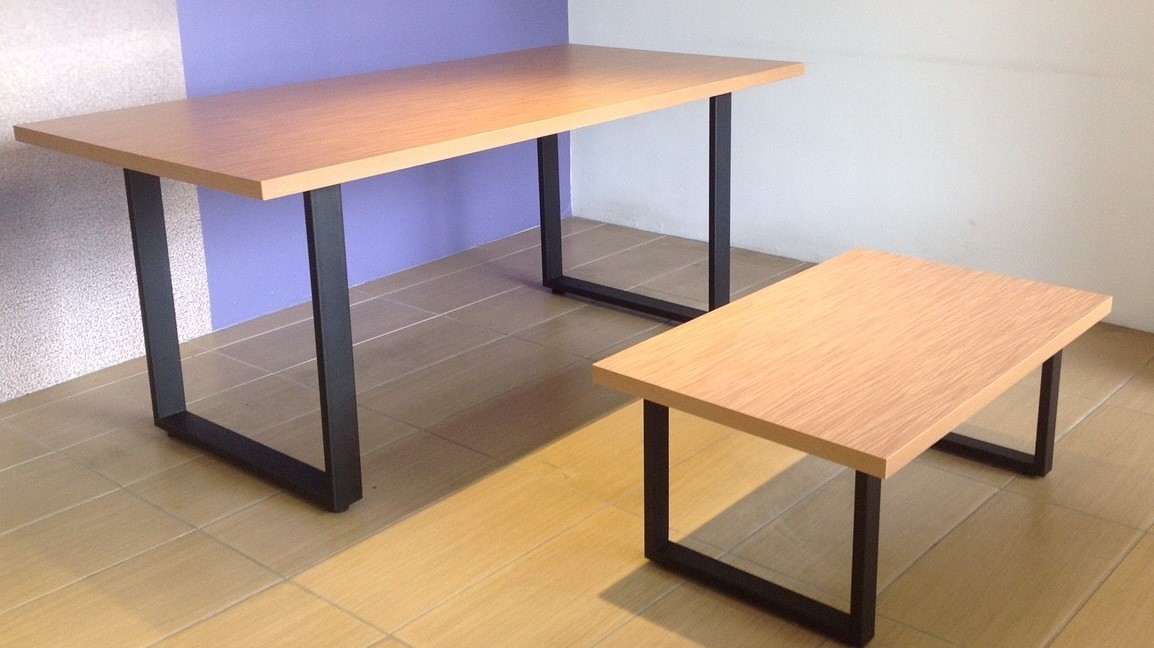

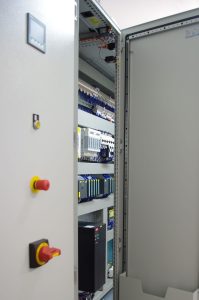

Typical Uses: Home and office furniture, IT hardware, industrial machinery and equipment, switchboards, shelvings, lighting fixtures, domestic appliances, electrical trunkings etc


Gloss at 60°C: Matt 10-35 GU
Colour Range: Full range, with whites and light colours showing overbake yellowing for FF6 and FF165
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 10 mins @ 190°C
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Very good
Compliances: Compliant to major regulatory requirements
Typical Uses: Home and office furniture, IT hardware, industrial machinery and equipment, switchboards, shelvings, lighting fixtures, domestic appliances, electrical trunkings etc


Gloss at 60°C: Satin-matt 25-45 GU
Colour Range: Full range, with whites and light colours showing overbake yellowing for FF6 and FF165
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 10 mins @ 180°C
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Very good
Compliances: Compliant to major regulatory requirements
Typical Uses: Home and office furniture, IT hardware, industrial machinery and equipment, switchboards, shelvings, lighting fixtures, domestic appliances, electrical trunkings etc


Gloss at 60°C: Satin-glossy 50-95 GU
Colour Range: Full range, with whites and light colours showing overbake yellowing for FF6 and FF165
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 10 mins @ 180°C
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Excellent
Compliances: Compliant to major regulatory requirements
Typical Uses: Home and office furniture, IT hardware, industrial machinery and equipment, switchboards, shelvings, lighting fixtures, domestic appliances, electrical trunkings etc


Gloss at 60°C: Satin-glossy 50-95 GU
Colour Range: Full range, with whites and light colours showing overbake yellowing for FF6 and FF165
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 10 mins @ 160°C
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Very good
Compliances: Compliant to major regulatory requirements
Typical Uses: Home and office furniture, IT hardware, industrial machinery and equipment, switchboards, shelvings, lighting fixtures, domestic appliances, electrical trunkings etc
