Hyper Durable Fluoropolymer

HYPERDURABLE FLUOROPOLYMER COATING

FOR SUPERIOR WEATHERABILITY
A thermoset hyperdurable coating for architectural applications. Formulated with top premium fluoropolymer resins and exterior grade pigments for the highest level of durability for architectural aluminium used in harsh climates such as the tropics.

Matt to satin to glossy finish with very good flow-out

Excellent gloss and colour retention, chalking resistance and long-lasting film integrity

Meets Qualicoat Class 3 and AAMA 2605 architectural specifications

Good substrate adhesion as a single coat system (primer not required)

TECHNICAL DATA
Gloss at 60°C: Matt-high gloss 15-85 GU
Colour Range: Wide range, excluding certain high-chroma, exotic colours
Pre-treatment:

  • Aluminium alloys — Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 205°C/12-15mins; 200°C/15-20mins; 195°C/20-25mins
Film Thickness: 50-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Good
Compliances: Compliant to major regulatory requirements. Meets Qualicoat Class 3 and AAMA 2605
Typical Uses: Architectural hardware eg.aluminium extrusions and panels etc

Super Durable Polyester

SUPERDURABLE
POLYESTER COATING

FOR EXCELLENT WEATHERABILITY
A series of superdurable polyester powder coatings for architectural applications. Formulated with premium resins and exterior grade pigments for excellent durability for architectural aluminium used in harsh climates such as the tropics.

Matt to satin to glossy finish available, depending on the grade

Very good flow-out. Excellent gloss and colour retention, chalking resistance and long-lasting film integrity

Meets Qualicoat Class 2 and AAMA 2604 architectural specifications

APR/H additionally meets dedicated UVA and UVB accelerated weathering specifications

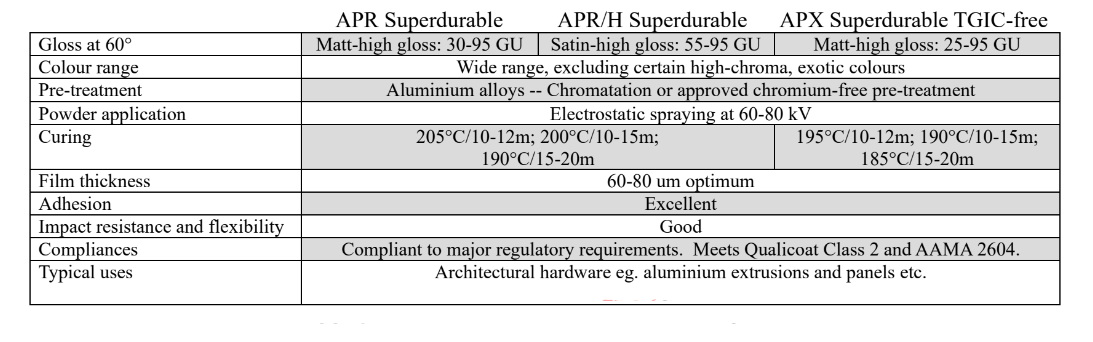

TECHNICAL DATA
Gloss at 60°C: Matt-high gloss 30-95 GU
Colour Range: Wide range, excluding certain high-chroma, exotic colours
Pre-treatment:

  • Aluminium alloys — Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 205°C/10-12m; 200°C/10-15m;190°C/15-20m
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Good
Compliances: Compliant to major regulatory requirements. Meets Qualicoat Class2and AAMA 2604
Typical Uses: Architectural hardware eg. aluminium extrusions and panels etc

Gloss at 60°C: Satin-high gloss 55-95 GU
Colour Range: Wide range, excluding certain high-chroma, exotic colours
Pre-treatment:

  • Aluminium alloys–Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 205°C/10-12m; 200°C/10-15m;190°C/15-20m
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Good
Compliances: Compliant to major regulatory requirements. Meets Qualicoat Class2and AAMA 2604
Typical Uses: Architectural hardware eg. aluminium extrusions and panels etc

Gloss at 60°C: Matt-high gloss 25-95 GU
Colour Range: Wide range, excluding certain high-chroma, exotic colours
Pre-treatment:

  • Aluminium alloys–Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 195°C/10-12m; 190°C/10-15m;185°C/15-20m
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Good
Compliances: Compliant to major regulatory requirements. Meets Qualicoat Class2and AAMA 2604
Typical Uses: Architectural hardware eg. aluminium extrusions and panels etc

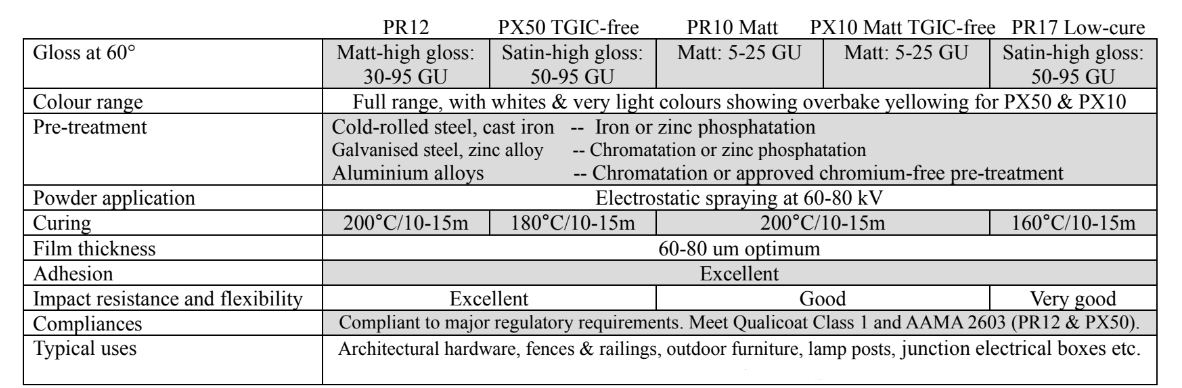

Standard Durable Polyester

OUTDOOR DURABLE
POLYESTER COATING

FOR EXTERIOR USE
A series of outdoor durable polyester powder coatings for architectural applications. Formulated with exterior grade resins and pigments for very good overall coating durability and properties for outdoor environments.

Matt to satin to glossy finish available, depending on the grade

Very good flow-out, gloss and colour retention, chalking resistance and long-lasting film integrity

PR12 & PX50 meet Qualicoat Class 1 & AAMA 2603 architectural specifications

TECHNICAL DATA
Gloss at 60°C: Matt-high gloss 30-95 GU
Colour Range: Full range, with whites & very light colours showing overbake yellowing for PX50 & PX10
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pretreatment

Powder Application: Electrostatic spraying at 60-80 kV
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Excellent
Compliances: Compliant to major regulatory requirements. Meet Qualicoat Class 1 and AAMA 2603 (PR12 & PX50)

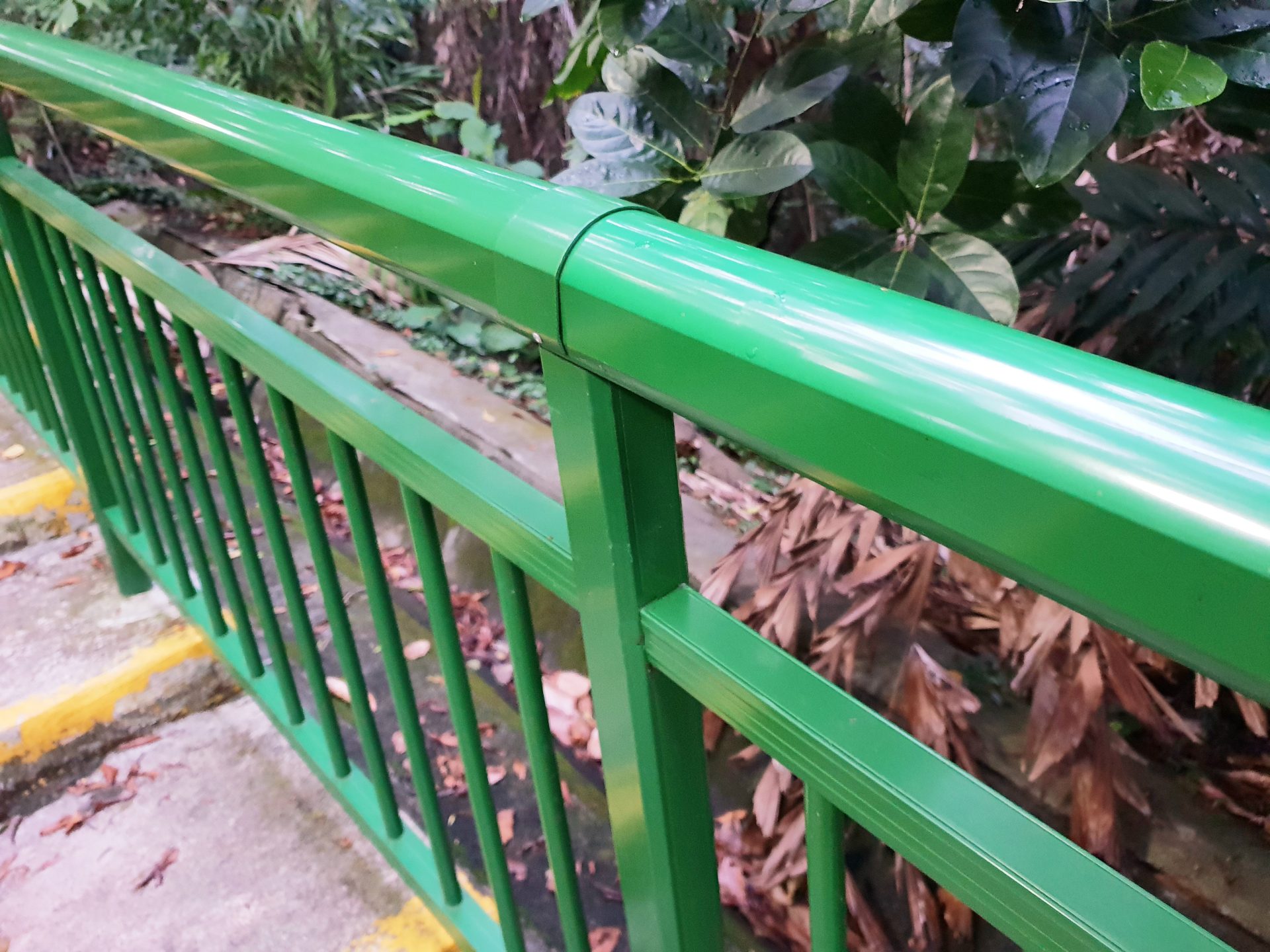

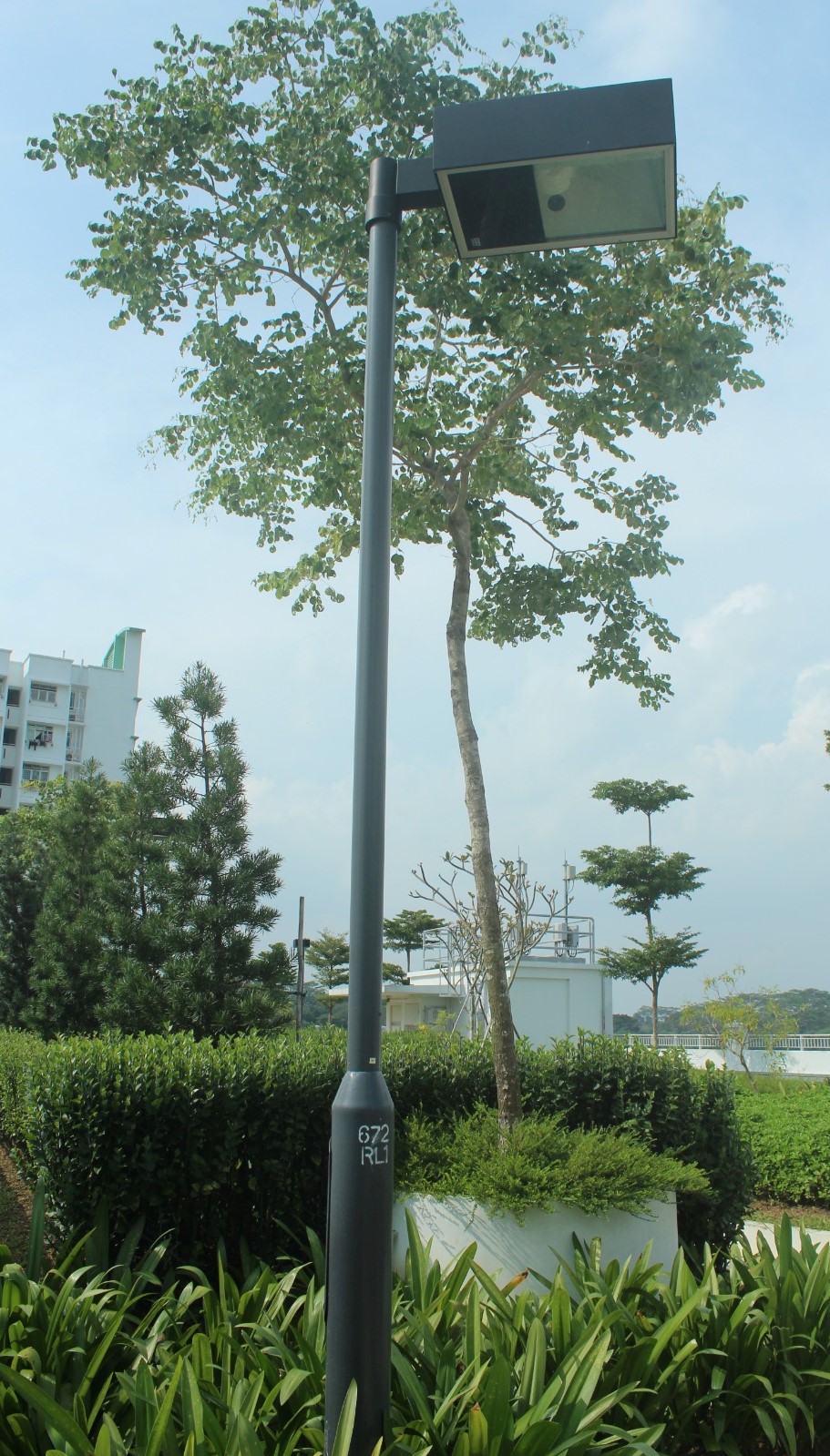

Typical Uses: Architectural hardware, fences & railings, outdoor furniture, lamp posts, junction electrical boxes etc

Gloss at 60°C: Satin-high gloss 50-95 GU
Colour Range: Full range, with whites & very light colours showing overbake yellowing for PX50 & PX10
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pretreatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 180°C/10-15m
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Excellent
Compliances: Compliant to major regulatory requirements. Meet Qualicoat Class 1 and AAMA 2603 (PR12 & PX50)
Typical Uses: Architectural hardware, fences & railings, outdoor furniture, lamp posts, junction electrical boxes etc

Gloss at 60°C: Matt 5-25 GU
Colour Range: Full range, with whites & very light colours showing overbake yellowing for PX50 & PX10
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pretreatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing:200°C/10-15m
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Good
Compliances: Compliant to major regulatory requirements. Meet Qualicoat Class 1 and AAMA 2603 (PR12 & PX50)
Typical Uses: Architectural hardware, fences & railings, outdoor furniture, lamp posts, junction electrical boxes etc

Gloss at 60°C: Matt 5-25 GU
Colour Range: Full range, with whites & very light colours showing overbake yellowing for PX50 & PX10
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pretreatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 200°C/10-15m
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Good
Compliances: Compliant to major regulatory requirements. Meet Qualicoat Class 1 and AAMA 2603 (PR12 & PX50)
Typical Uses: Architectural hardware, fences & railings, outdoor furniture, lamp posts, junction electrical boxes etc

Gloss at 60°C: Satin-high gloss 50-95 GU
Colour Range: Full range, with whites & very light colours showing overbake yellowing for PX50 & PX10
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pretreatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing:160°C/10-15m
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Very good
Compliances: Compliant to major regulatory requirements. Meet Qualicoat Class 1 and AAMA 2603 (PR12 & PX50)
Typical Uses: Architectural hardware, fences & railings, outdoor furniture, lamp posts, junction electrical boxes etc

Polyurethane

OUTDOOR DURABLE
POLYURETHANE COATING

FOR EXTERIOR USE
A series of outdoor durable polyurethane powder coatings for architectural applications. Formulated with exterior grade resins and pigments for very good overall coating durability and properties for outdoor environments.

Matt to satin to glossy finish available, depending on the grade

Very good flow-out, gloss and colour retention, chalking resistance and long-lasting film integrity

Enhanced chemical resistance, PU4 in particular, compared to regular polyester coatings

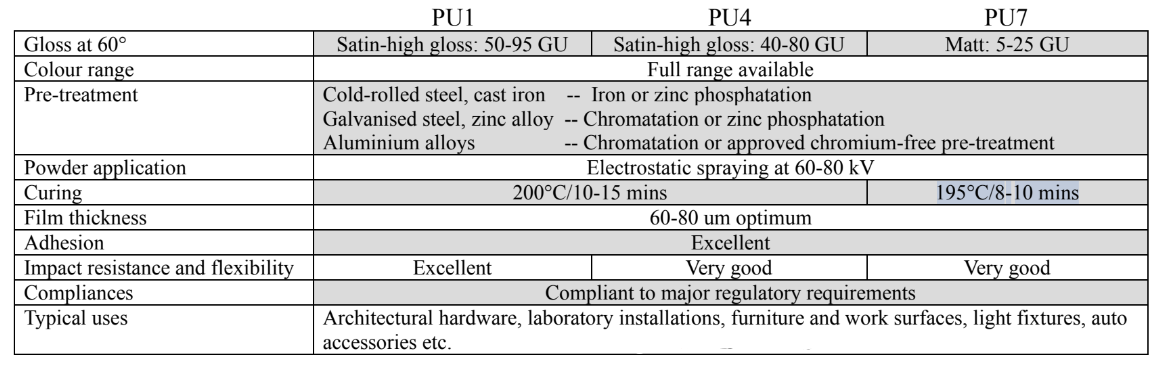

TECHNICAL DATA
Gloss at 60°C: Satin-high gloss 50-95 GU
Colour Range: Full range available
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 200°C/10-15 mins
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Excellent
Compliances: Compliant to major regulatory requirements
Typical Uses: Architectural hardware, laboratory installations, furniture and work surfaces, light fixtures, auto accessories etc

Gloss at 60°C: Satin-high gloss 40-80 GU
Colour Range: Full range available
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 200°C/10-15 mins
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Very good
Compliances: Compliant to major regulatory requirements
Typical Uses: Architectural hardware, laboratory installations, furniture and work surfaces, light fixtures, auto accessories etc

Gloss at 60°C: Matt 5-25 GU
Colour Range: Full range available
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 195°C/8-10 mins
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Very good
Compliances: Compliant to major regulatory requirements
Typical Uses: Architectural hardware, laboratory installations, furniture and work surfaces, light fixtures, auto accessories etc

Industrial Outdoor Polyester

INDUSTRIAL OUTDOOR
POLYESTER COATING

FOR EXTERIOR USE
A polyester powder coating for general outdoor applications. Formulated with exterior grade resins and pigments for good overall coating durability and properties for non-architectural use.

Matt to satin to glossy finish available.

Good flow-out, gloss and colour retention, chalking resistance and lasting film integrity.

TECHNICAL DATA
Gloss at 60°C:  Matt-high gloss: 30-95 GU
Colour Range: Full range available
Pre-treatment:

  • Cold-rolled steel, cast iron — Iron or zinc phosphatation
  • Galvanised steel, zinc alloy — Chromatation or zinc phosphatation
  • Aluminium alloys — Chromatation or approved chromium-free pre-treatment

Powder Application: Electrostatic spraying at 60-80 kV
Curing: 200°C/10-15 mins
Film Thickness: 60-80 um optimum
Adhesion: Excellent
Impact resistance and flexibility: Very Good
Compliances: Compliant to major regulatory requirements
Typical Uses:  Industrial outdoor hardware, veranda railings and furniture, junction electrical boxes etc
